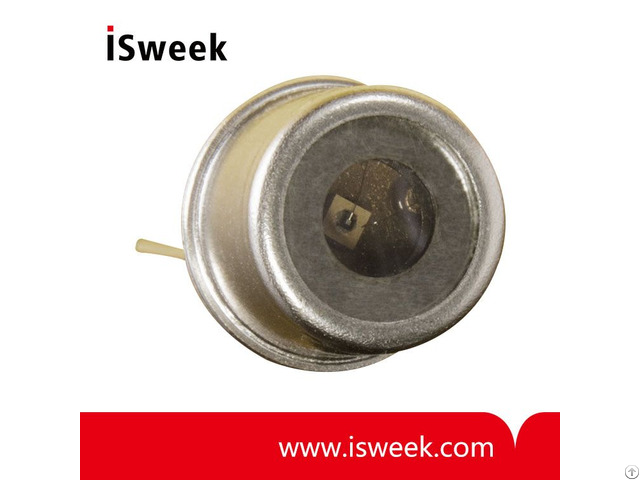

Sg01s C5 Uvc Only Sic Based Uv Photodiode With Standard Dvgw W294 - China

price: check with company for price

SG01S-C5

UVC-only SiC based UV photodiode A = 0.06 mm2

/

Properties of the SG01S-C5 UV photodiode

• UVC-only sensitivity, compliant with DVGW W294, PTB reported high chip stability

• Active Area A = 0.06 mm2

• TO5 hermetically sealed metal housing, 1 isolated pin and 1 case pin

• 10mW/cm2 peak radiation results a current of approx.

720 nA

/

SG01S-C5 UV photodiode Specifications Typical Responsivity at Peak Wavelength: 0.120/AW

Wavelength of max.

Spectral Responsivity: 275nm

Responsivity Range: 225 - 287nm Active Area: 0.06mm2

Dark Current (1V reverse bias): 0.2fA

Capacitance: 15pF

Short Circuit (10mW/cm2 at peak): 720nA

Temperature Coefficient: < 0.1%/K Operating Temperature: -55 ~+170°C

Storage Temperature: -55 ~ +170°C

Soldering Temperature (3s): 260°C
