Sg01xl 5iso90 Broadband Sic Based Uv Photodiode - China

price: check with company for price

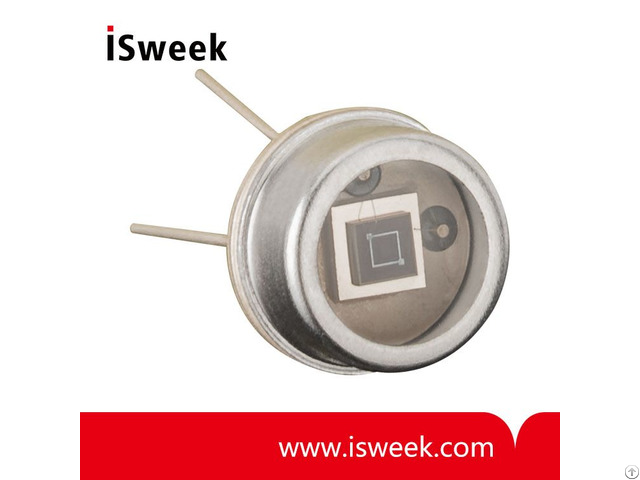

Sg01xl 5iso90 Broadband Sic Based Uv Photodiode

Products Photos Catalog Sg01xl 5iso90 Photos Catalog

SG01XL-5ISO90

Broadband SiC based UV photodiode A = 7.6 mm2

/

Properties of the SG01XL-5ISO90 UV photodiode

• Broadband UVA+UVB+UVC, PTB reported high chip stability

• Active Area A = 7.6 mm2

• TO5 hermetically sealed metal housing, short cap, two isolated pins in a circle

• 10µW/cm2 peak radiation results a current of approx.

99 nA

/

SG01XL-5ISO90 UV Photodiode Specifications Typical Responsivity at Peak Wavelength: 0.130/AW

Wavelength of max.

Spectral Responsivity: 280nm

Responsivity Range: 221 -358nm Active Area: 7.6mm2

Dark Current (1V reverse bias): 25.3fA

Capacitance: 1900pF

Short Circuit (10µW/cm2 at peak): 99nA

Temperature Coefficient : < 0.1%/K Operating Temperature: -55 ~ +170°C

Storage Temperature: -55 ~ +170°C

Soldering Temperature (3s): 260°C

Reverse Voltage: 20V


Company Contact:


  • Phone: 86-0755-83289036

  • Address: 16 Floor, Building #3, Zhongke Mansion, Gaoxin South 1st Rd, Hi-Tech Park, Nanshan, Shenzhen , Guangdong , China

  • Email: Email

Published date: September 28, 2018

  • Business Description: ISweek has been devoted to providing one-stop product distributing and purchasing solution and service for purchasers, suppliers, traders and manufactures from all over the world in industrial science and technology industry.

    We are able to provide high-quality original products and thorough technical support and after-sale service to our member users.
