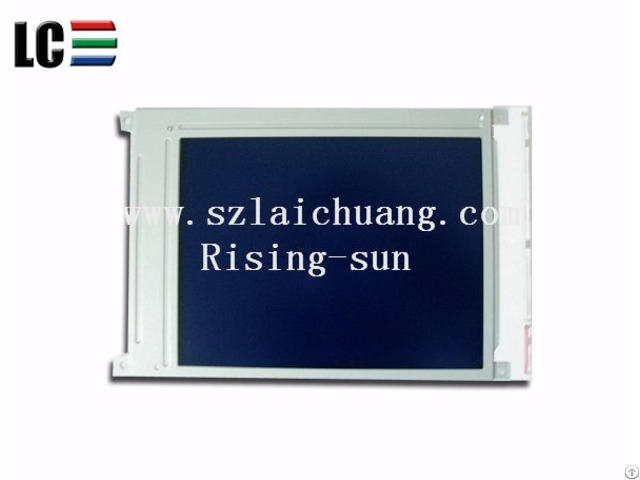

Sharp Lm32019t 320 240 Stn Lcd Moudle 5 7 Inch - China

Productor SHARP

Model LM32019T

Size 5.7"

Resolution 320*240

Resolution Name QVGA

Display scale 4: 3

Pixel Pitch 0.36*0.36 mm

Panel Composition lcd

Technology STN-LCD

Display mode STN, FSTN, Transmissive

Luminance 100 nits

Contrast Ratio 6: 1

Color Saturation -1%

Response 190/210 (Tr/Td) ms

Viewing Angle 25/40/40/40

White Field Dynamic 1.30 (5 points)

Reverse Scan No

The kind of Singnal Parallel

Interface Parallel

Singnal Interface Definition BLL-3PINS-HNL

Drive-screen voltage 5.0/21.9V (VDD/VEE)

Input Current 1.2/3.5mA (IDD/IEE)

Brand of Singnal Interface JST

Pitch of Singnal Interface 4 mm

Pin of Singnal Interface 3 pins

Operation Temperature 0 °C ~ 45 °C

Storage Temperature -25°C ~ 60°C

Active Area 115.17*86.37 mm

Display Area 121.0*91.6

Outline 166.00* 109.00*7.50 mm

Touch Panel no
