Signal Connector Hg F Z514 - China

price: contact company for price

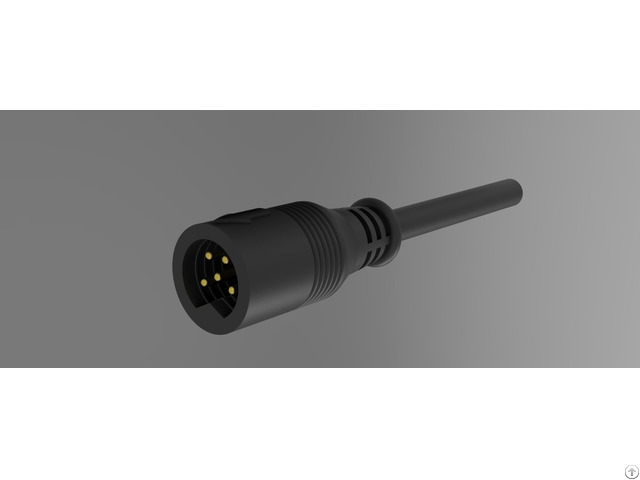

Signal Connector Hg F Z514

Products Photos Catalog Signal Connector Z514 Photos Catalog

SIGNAL CONNECTOR HG-F-Z514A

Electrical Characteristics

Rated Voltage 48V AC/DC Rated Current 2A/20A Withstanding Voltage 500V Insulation Resistance ≥20MΩ Contact Resistance ≤10mΩ Mechanical Characteristics

Mating Type Insertion Force 100N Max, Extraction Force 50N Min Mating Cycles 200Times Performance

Operation Temperature -25℃~+80℃ Protection Degree IP66 Wires Specification

Max Outer Diameter 14mm Mating Length 58mm Contact Material Copper alloy plated with gold which conforms to military standard Wire Section 0.20mm²+ 1.50mm² IP67 Signal Connector, Higo Signal Connector, Waterproof Signal Connector Price

Higo is a professional signal connector supplier, we hot selling ROHS signal connector, IP67 Splitter Connector, REACH Battery Connector, ROHS Motor Connector, REACH battery connector and IP67 waterproof connector, etc.


Company Contact:


  • Phone: 86 512 51918068

  • Address: No.17,Qingfang Road,Xinzhuang Town, Changshu , Jiangsu , China

  • Email: Email


Published date: October 26, 2018

  • Business Description: Shanghai Higo Electrical Equipment Co., Ltd. is a high-tech company committed to the design and manufacture of advanced electrical connectors, and provides solutions for connector and cable and electromechanical products.

    The company's products range, is widely used in mechanical and electrical equipment, transportation, energy exploration and production, aerospace, medical, nuclear technology, military and other professional applications; We can not only supply high-quality products comply with relevant standards, but also can provide customized service products of high quality and fast; all products are through relevant application certification, meet the requirements of environmental protection.

    The process of Higo is the process of serving customers and being successful with their customers! We are diligently and diligently doing everything, and we are full of confidence to meet every challenge.

    Higo can supply signal connector, motor connector and battery connector, etc.

    Our product's reliability is guaranteed and it can give you a good use experience.
