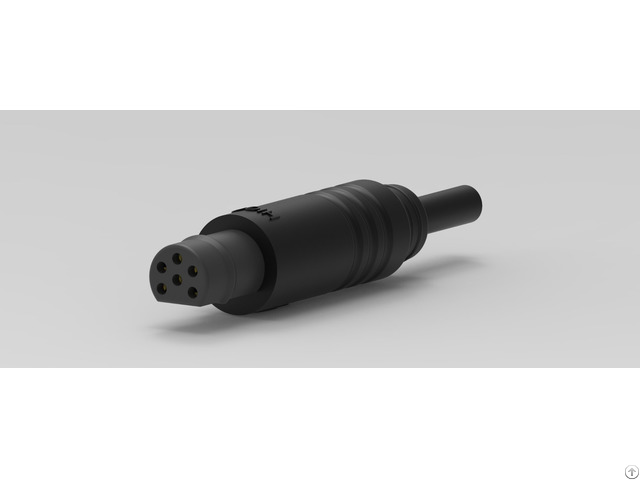

Signal Connector Mini A 2 6pin - China
price: contact company for price
Signal connector mini a 2~6pin
electrical characteristics
rated voltage 48v ac/dc rated current 2a withstanding voltage 500v insulation resistance ≥20mΩ contact resistance ≤10mΩ mechanical characteristics
mating type insertion force 80n max, extraction force 30n min mating cycles 200times performance
operation temperature -25℃~+80℃ protection degree ip66 wires specification
max outer diameter 9.0mm mating length 60mm contact material copper alloy plated with gold which conforms to military standard wire section 0.14mm²~ 0.2mm²
Company Contact:
- Posted By: Shanghai Higo Electrical Equipment Co., Ltd.
- Phone: 86 512 51918068
- Address: No.17,Qingfang Road,Xinzhuang Town, Changshu , Jiangsu , China
- Email:
- Website: https://www.higocon.com
Published date: October 26, 2018
- Business Description: Shanghai Higo Electrical Equipment Co., Ltd. is a high-tech company committed to the design and manufacture of advanced electrical connectors, and provides solutions for connector and cable and electromechanical products.
The company's products range, is widely used in mechanical and electrical equipment, transportation, energy exploration and production, aerospace, medical, nuclear technology, military and other professional applications; We can not only supply high-quality products comply with relevant standards, but also can provide customized service products of high quality and fast; all products are through relevant application certification, meet the requirements of environmental protection.
The process of Higo is the process of serving customers and being successful with their customers! We are diligently and diligently doing everything, and we are full of confidence to meet every challenge.
Higo can supply signal connector, motor connector and battery connector, etc.
Our product's reliability is guaranteed and it can give you a good use experience.
