Signal Connector Mini E 2pin - China

price: contact company for price

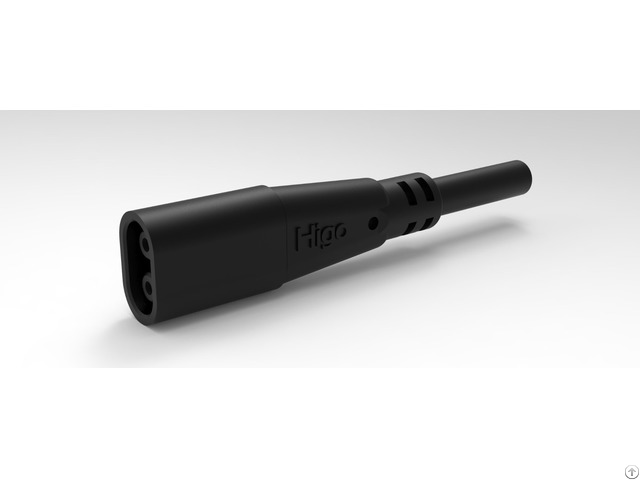

Signal Connector Mini E 2pin

Products Photos Catalog Signal Connector Mini Photos Catalog

Signal connector mini e 2pin

electrical characteristics

rated voltage 48v ac/dc rated current 2a withstanding voltage 500v insulation resistance ≥20mΩ contact resistance ≤10mΩ mechanical characteristics

mating type insertion force 80n max, extraction force 30n min mating cycles 200 times performance

operation temperature -25℃~+80℃ protection degree ip66 wires specification

max outer diameter 9mm mating length 55mm contact material copper alloy plated with gold which conforms to military standard wire section 0.14mm²/0.20mm² higo signal connector, ebike motor connector, ip67 battery connector manufacturer

higo is a china manufacturer of splitter connector, splitter connector, ip67 signal connector, dustproof battery connector, motor connector and battery connector, etc.

our products can be customized according to the customer's requirements, welcome to contact us.


Company Contact:


  • Phone: 86 512 51918068

  • Address: No.17,Qingfang Road,Xinzhuang Town, Changshu , Jiangsu , China

  • Email: Email


Published date: October 26, 2018

  • Business Description: Shanghai Higo Electrical Equipment Co., Ltd. is a high-tech company committed to the design and manufacture of advanced electrical connectors, and provides solutions for connector and cable and electromechanical products.

    The company's products range, is widely used in mechanical and electrical equipment, transportation, energy exploration and production, aerospace, medical, nuclear technology, military and other professional applications; We can not only supply high-quality products comply with relevant standards, but also can provide customized service products of high quality and fast; all products are through relevant application certification, meet the requirements of environmental protection.

    The process of Higo is the process of serving customers and being successful with their customers! We are diligently and diligently doing everything, and we are full of confidence to meet every challenge.

    Higo can supply signal connector, motor connector and battery connector, etc.

    Our product's reliability is guaranteed and it can give you a good use experience.
