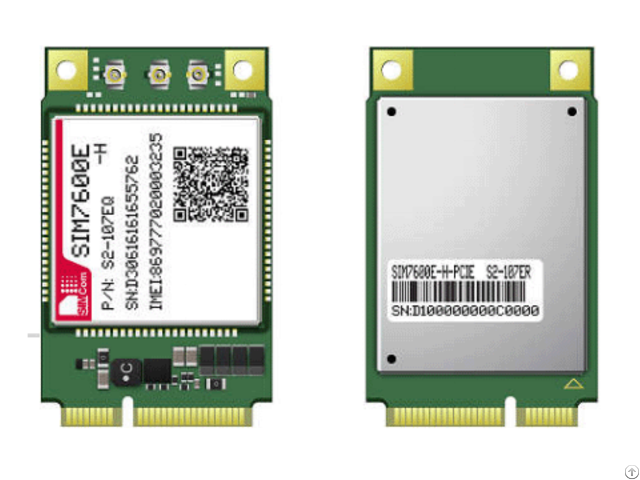

Simcom Sim7600e H Pcie 4g Lte Cat4 Cellular Module - Taiwan

SIM7600X-H-PCIE is a complete multi-band LTE-FDD/LTE TDD/HSPA+/UMTS/EDGE/GPRS/ GSM module solution in Mini PCIE type which supports LTE CAT4 up to 150Mbps for downlink and 50Mbps for uplink data transfer.

It is combined with a SIM7600X-H (LCC) module and a Mini PCIE adapter board.

Target market: EMEA/Korea/Thailand

SIM7600E-H-PCIE

Support 4G LTE FDD Band B1/B3/B5/B7/B8/B20 and TDD Band B38/B40/B41

Support 3G UMTS/HSPA+ B1/B5/B8

Support 2G GSM/GPRS/EDGE B3/B8

GSM/GPRS/EDGEB3/B8 General features

* Mini PCIE package

* Control Via AT Commands

* Supply voltage range: 3.0V~ 3.6V, 3.3V Typical

* Operation temperature: -40℃to +85℃

* Bandwidth: 1.4/3/5/10/15/20MHz

* 3GPP E-UTRA Release 11

* Dimensions: 50.8*31*5.35mm

* Weight: 12.6g Support for Data transfer

* LTE Downlink up to 150Mbps, Uplink up to 50Mbps

* HSPA+ Downlink up to 42Mbps, Uplink up to 5.76Mbps

* WCDMA Downlink/Uplink up to 384Kbps

* EDGE Downlink/Uplink up to 236.8Kbps

* GPRS Downlink/Uplink up to 85.6Kbps Other features

* USB Driver for Microsoft Windows

* 2000/XP/Vista/Win7/Win8/W in10

* USB Driver for Linux /Android

* RIL supporting for Android 2.4/4.0/5.0/6.0/7.0

* MBIM to Win8

* Firmware update via USB

* TCP/IP/IPV4/IPV6/Multi-PD P/FTP/FTPS

/HTTP/HTTPS/SMTP/SMTPS /DNS

* SSL3.0/TLS1.0/TLS1.2

* DTMF (Sending and Receiving)

* Audio Playing

* USB Audio and VoLTE

* FOTA

* eCall* Interfaces

* USB2.0 with High speed up to 480Mbps

* UART

* GPIO

* Antenna: Solder pads for Primary, Rx-diversity and GNSS antennas

* (U)SIM card (1.8V/3.0V)

* Digital Audio through PCM

* Analog Audio (Optional)

* Embedded SIM card socket (Optional)

* GNSS: GPS/GLONASS/Beidou/Galile o* Certifications

* RoHS Compliant

* CE
