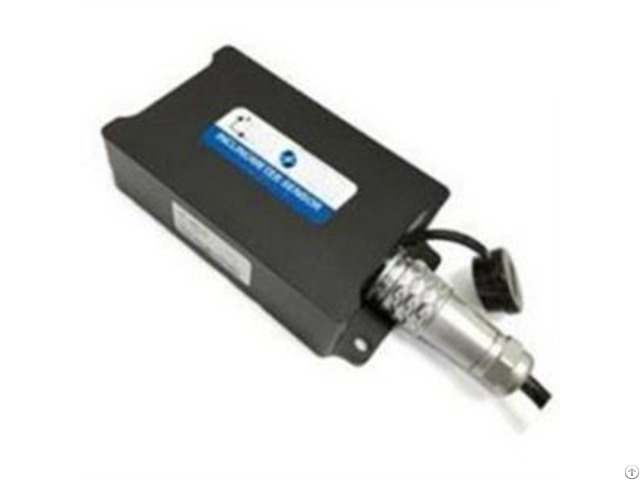

Single Axis Tilt Sensor - China
price: 60.00 Dollar US$
Digital Single Axis Tilt Meter is designed for industrial field control field.
It has a built-in high-precision 16bit A/D converter and an N-order filtering algorithm to measure the tilt and pitching angle of the sensor output relative to the horizontal plane.
The output interfaces RS232, RS485, RS422, TTL, PWM, CAN, MODBUS bus are available for selection.
The product is equipped with a high-precision digital sensor, which can correct the temperature drift of the sensor according to the monitoring temperature change of the built-in temperature sensor to ensure the repeatability of the product in low and high temperature environments.
The corresponding output frequency is 100Hz.
The finished product has reliable and stable performance, good scalability, and a variety of output options, which are suitable for various industrial control environments.
Single axis tilt monitoring
Full range accuracy 0.01°, resolution 0.001°
Output frequency 5~100HZ (optional)
Wide voltage input DC 9~36 (5V can be customized)
Wide temperature working -40~+85℃
Measuring range: 0~±180°(optional)
High vibration resistance >20000g
Baud rate 2400~115200 (adjustable)
IP67 protection
Output RS232/RS485/TTL/MODBUS (optional)
Small volume (90*40*27mm) (customizable) Applications
High voltage wire tower pole monitoring
Satellite solar antenna positioning
Mining machinery, oil logging equipment
Medical equipment
Hydraulic lifting platform
Inclination monitoring
Angle control of various construction machinery
Inspection of bridges and dams
