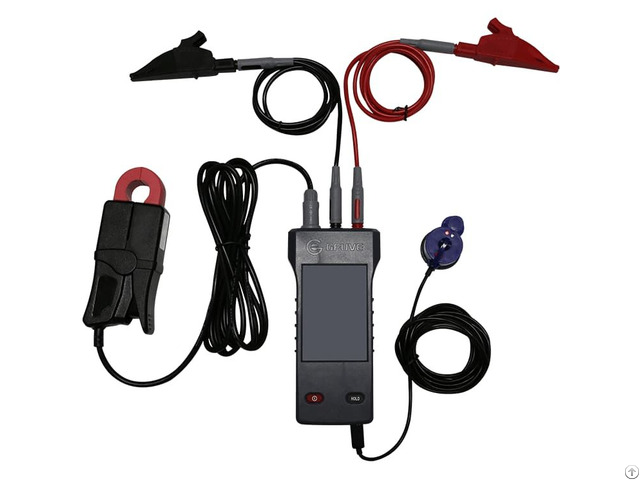

Single Phase Energy Meter Calibrator Gf112v2 Gfuve Metrology Handheld Ac Tester 0 1class - China

price: 3285.00 Dollar US$

GF112V2 made in GFUVE GROUP, is a high precision single phase handheld energy meter accuracy tester in class 0.1, used for testing all kinds of single phase electronic meters error on site.

Wide measurement range from 1mA to 200A and 0 to 600V, frequency range 40.000Hz to 70.000Hz, and also can be used to test alternating current electrical parameters - voltage, current, active power, reactive power, apparent power, harmonics, phase angle, power factor, frequency, energy etc.

It can display U & I wave form and vector diagram.

Small size, light weight, simple and convenient operation.

It is an ideal testing equipment for the metrology departments of electricity power companies and electrical service engineers.

Specification

Customized support: OEM, ODM, OBM, Software reengineering

Place of Origin: Beijing, China

Brand Name: GFuve

Model Number: GF112V2

Accuracy class: 0.1%

Power supply: AAA type, Li rechargeable battery, 2700mAh, 3.6V

warm-up: <2 min

Voltage and current range: 600V/1000A

Clamp on cts diameter: 8mm, 13mm, 18mm, 20mm, 30mm, 50mm, 120mm optional

Pulse input level: 5V

Data storage: 5000 sets

Communication port: USB & Bluetooth port

Isolation protection: IEC 61010-1: 2001

Measurement Category: 600V CAT III

Degree of protection: IP54

Display: 3.5 inch touch TFT color LCD


Company Contact:


  • Phone: 18901232181

  • Address: Oriental HuaRui A No. 150 Guanzhuang Road Chaoyang District Beijing, 100024, China, BEIJING , China

  • Email: Email

Published date: February 1, 2024

  • Business Description: Beijing GFUVE Electronics Co., Ltd. was established in 2005 - It combined science, industry and trade together as one high-tech enterprise.
