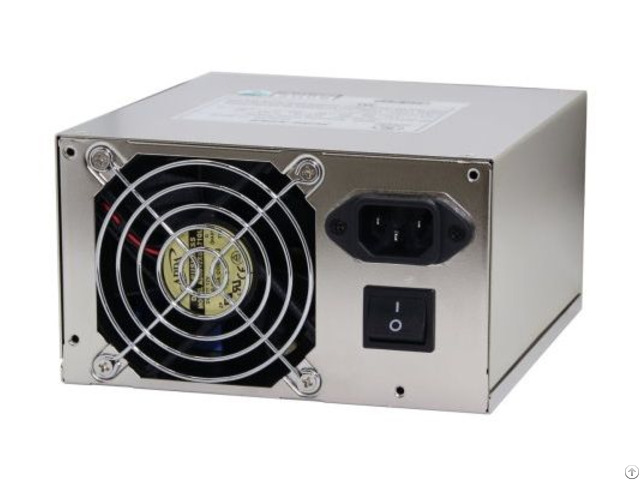

Single Power Supply Ps Ii Tcps1d41y040 - Taiwan

price: contact company for price

(AC to DC) Safety Approval

Meet CE Rohs 2.0 2011/65/EU

Meet REACH

Operation Temp: 0°C~50°C High Efficiency Description:

1 - Watts: 400W

2 - Input:

Voltage: 100 - 240Vac Full Range

Frequency: 50 - 60Hz.

Input current: 10 for 115V AC, 5A for 230VAC.

Inrush current: 25A for 115VAC, 50A for 230VAC

3 - Dimensions:

L x W x H: 140 x 150 x 86 (mm) / 5.51 x 5.91 x 3.39 (inches)

4 - Others Certificates: REACH/RoHS 2.0 FEATURES:

1 - ATX PS II

2 - Full Range AC Input

3 - Efficiency: The minimum efficiency shall be 80% with full load and 115Vac/60Hz.

4 - Hold-Up Time: The output voltages stay in regulation at least 18ms with 70% load after loss of AC input.

5 - Over Current Protection

6 - Over Voltage Pretection

7 - Short Circuit Protection

8 - Over Temperature Protection

9 - Environmental Requirement:

Temperature:

Operating : 0℃ to +50℃

Non Operating: -20℃ to +70℃

Humidity:

Operating : 5% to 95%, non-codensing

Non Operation: 20% to 90%, non-condensing

Altitude:

Altitude during operation: Up to 5000m

Cooling Method:

By ball bearing DC fan.

10 - Reliability MTBF : Using MIL - HDBK -217F the calculated MTBF>100, 000 hours at 25℃.


Company Contact:


  • Phone: 886-2-26822505

  • Address: No. 2-1, Da an Rd., Shulin Dist., , New Taipei City, Taiwan , Taiwan

  • Email: Email


Published date: December 24, 2019

  • Business Description: Established in 1989, TC Sure Star Computer Co.

    has been designing and manufacturing quality industrial power supply units and other related power products, such as Single Power Supply, Redundant Power Supply, power Supply Accessories, etc.
