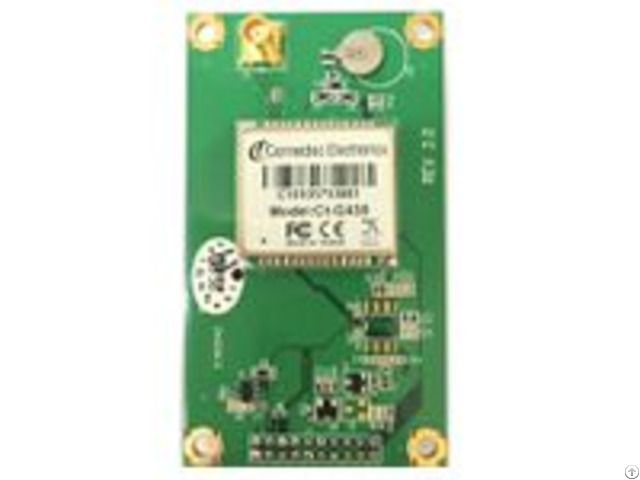

Sirf Iv Gps Engine Board With Mcx Connector Ct G340 - Taiwan

The Connectec Ct-G340 S4 GPS module is a high sensitivity, low power, Surface Mount Device (SMD) that can be compatible to Ct-G348 or fully utilized SiRFstarIV upgrade features.

This 48-channel global positioning system (GPS) receiver is designed for a wide range of OEM applications and is based on the GPS signal search capabilities of the SiRFstarIV GSD4e

chipset, SiRF’s newest chipset technology.

The Ct-G340 S4 provides flexible I/O interfaces (UART is default, I2C and SPI by customer requirement).

Performance

* Highest performance GPS PVT engine

* High acquisition sensitivity for fast TTFF

* Extremely low weak signal tracking sensitivity

* High jamming immunity

* Smallest footprint and total solution size

* Highest level of BOM integration

* Value added software enhancements

* Multimode A-GPS (Autonomous, MS-Based, and MS-Assisted) – Need operator Support

* Embedded CGEE / SGEE (Need server support) speed up TTFF a lot and makes cold start time to be around 22 seconds.

* SiRFGeoRecovTM Reverse EE make positioning process being done under power saving mode.

* Reacquisition Time: 0.1 second

* RF Metal Shield for best performance in noisy environments Interface

* DIP type pitch 2.0mm- 2x10 pin header.

* Protocol: NMEA-0183 compliant.

* Baud Rate: 4800 bps, 9600 bps, 19200 bps, 38400 bps.

* RF Connector : MCX, Right angle MCX (RMCX) - option, Right angle SMA (RSMA) - option .

Advantages

* Built-in LNA.

* Embed CGEE (Client Generated Extended Ephemeris) that can capture ephemeris data from satellites locally and predicts ephemeris out to 3 days.

So if the module was off within 3 days, it could complete positioning process within 2 seconds just like hot start.

* It can remove in-band jammer up to 80db-Hz and track up to 8CW jammers, so the module can prevent GPS signal interference when design-in the electrical device with noisy electrical signal interferences such as Laptop, mobile phone, DSC, etc.

* Maintain tracking sensitivity as low as -163dBm, even without network assistance.

(SiRF StarIII has only -159dBm sensitivity)

* 5 Hz Navigation Update Rate : User can select 1 Hz or 5 Hz navigation update rate.

(V4.1.0 firmware will be support)

* SBAS Ranging : SBAS satellite measurements will be used in the navigation solution for improved DOP and coverage.

(V4.1.0 firmware will support)

* Suitable for battery drive devices that need lower power consumption application

* Ideal for high volume mass production(Taping reel package)

* Cost saving through elimination of RF and board to board digital connectors .
