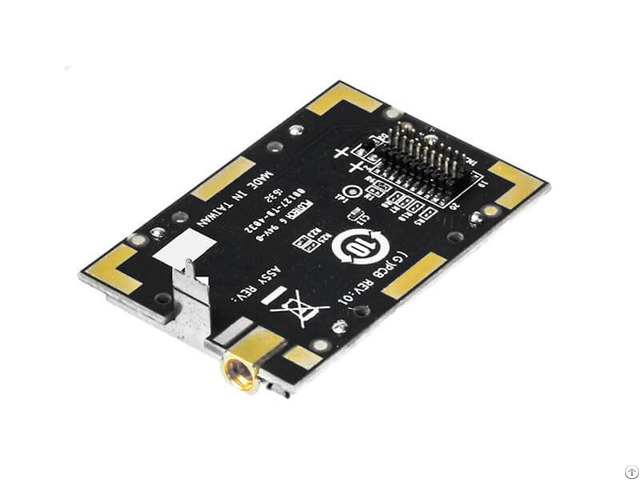

Sirf V Gps Glonass Engine Board Mmcx Connector - Taiwan
price: contact company for price
Ct-G354 of products utilized SiRFstarV ™ and features Quad-GNSS for tracking GPS, GLONASS, BDS and Galileo satellites.
The product family delivers highly accurate continuous location, advanced power management and high interference immunity.
These continue to push the envelope of performance in sensitivity, TTFF and urban canyon availability and accuracy.
With a built-in DSP and extremely low power consumption, the family can get fast location fixes for geo-tagging images or videos, asset tracking and wearable applications.
Performance
- GPS, GLONASS, Galileo, BDS and SBAS reception for high GNSS availability and accuracy
- High sensitivity navigation engine (PVT) tracks as low as
- GPS : -165 dBm
- GLONASS : -161 dBm
- 52 track verification channels
- SBAS (WAAS or EGNOS, MSAS)
- Active Jammer Remover, removes in-band jammers up to 80 dB-Hz
- Tracks up to 8 CW jammers
- Multimode A-GPS (Autonomous, MS-Based, and MS-Assisted), need operator support.
- Embedded CGEE / SGEE (With back-end server support) speed up TTFF a lot and makes cold start time to be around 20+ seconds.
- SiRFGeoRecovTM Reverse EE makes positioning process being done under power saving mode.
- Reacquisition Time : 0.1 second
- RF Metal Shield for best performance in noisy environments Hardware and Software
- Based on the high performance features of the SiRFstarV™ low power single core logic.
- Adaptive micropower controller
- Only 50 to 500μA maintains hot start capability (core logic)
- < 10mW required for TricklePower™ mode
- RoHS compliant (lead-free)
- Advanced navigation features
- Smart sensor supported by I²C interface
- External interrupt input for context change detection
- MMCX RF Connector
Company Contact:
- Posted By: Connectec Electronics Co., Ltd.
- Phone: +886-2-8221-6389
- Address: 7F-2, No.1213, Zhongzheng Rd., Zhonghe Dist.,, New Taipei City 235, Taiwan
- Email:
- Website: https://www.connectec.com.tw
Published date: June 30, 2022
- Business Description: Connectec is well respected in the precision GPS industry, offering a complete line of GPS receivers and Bluetooth communication products.
To fully support both domestic and international customers.
Established in 2002 in Taiwan by a number of professionals and experts in Communications and GPS (Global Positioning System) industries.
We focus and specialize in manufacturing small, lightweight and handy electronic products in applications of GPS and Bluetooth.
Our aim is to enrich peoples life with more conveniences, styles, innovation, safety and enjoyment.
Our products:
GPS/GLONASS module, GPS Engine Board, NB-IoT Module, GSM/3G/4G Module, GPS / GSM Antenna, GPS Mouse ,GPS Devices, GPS Systems, GPS Receiver, car tracking, AVL, Security system, GPS/GNSS antenna, GSM/3G/4G antenna, wifi antenna, RF Cable, RF Connector, OEM/ODM
