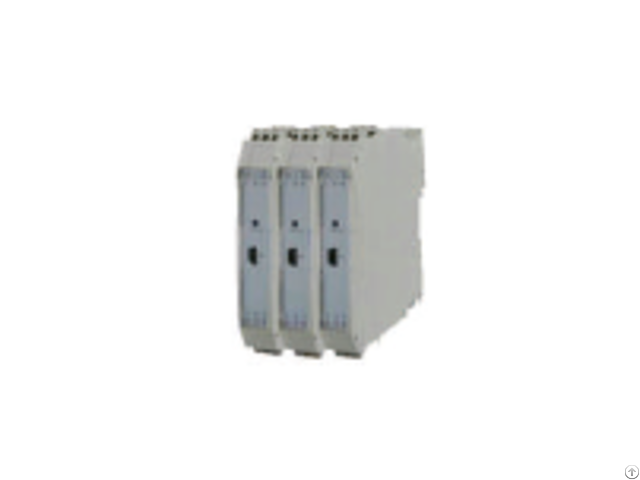

Sixx Signal Isolator Din Rail Mounrting - China

Description

Features

Blue Jay Technology offers the industry's best

selection of isolators.

Dozens of models are

now available to meet your needs.

Select

from single and dual-channel models with AC, DC, or loop-powered operation.

Signal

splitters deliver dual outputs from a single

source.

And whether you need a unit that

sinks or sources current, Blue Jay has the

right solution for you.

Optical or galvanic isolation eliminate ground

loop errors, reduce noise, and block high

voltage transient surges.

Our multi-channel

modules reduce costs and save space.

Models

with push-button calibration simplify

installation and maintenance tasks.

Units

with mini USB port preset for 4-20mA

input/output required.

·Support universal Input Signal

·Provide 26.18VDC input loop power

·TC/RTD sensor broken alarm

·Low Temp.

drift.

Auto zero calibrating

·Loop Power current limitation protection

(30mA)

·Over-current protection for input current

(50mA)

·Current output can be set inverse proportional

output

·Programmed by USB or adaptor

·w/o external power supply

·Back board designed with redundant powersupply

interfacesTechnical characteristics

SIXX

Signal Isolator

DIN-Rail Mounrting

BJ-SI 1 2 3

Typical wiring

Convert Accuracy

Series Name Optional Type

1: Only one channel input

2: Dual channel input

1: Only one channel output

2: Dual channel output

A: 0(4)-20mA

B: 0(4)-20mA (with out input loop powered)

T: TC(K, E, S, B, R, J, T, N); mV(-80-+80mV); V(0-1V)

R: RTD(PT100, PT200, PT500, PT1000, Cu50); R(0-400Ω, 0-4000Ω)

Blan k: Universal Input Signal

1 Input signal channel

2 Output signal channel

3 Input signal type

mV

Loop Powered AMP VOLT RTD / R TC

1

12

10

11

2

9

3

4

5

8

6

7

+ +

+

+

+

+

+

Output_1

Output_2

AUX 24VDC

Probe Type Range Min imum range A/D accuracy Conversion Accuracy

K -270~1372C 100C 0.3C 1C or 0.1%

E -270~1000C 100C 0.25C 1C or 0.1%

S -50~1768C 500C 1C 2C or 0.1%

B 400~1820C 500C 2C 2C or 0.1%

R -50~1768C 500C 1C 2C or 0.1%

J -210~1200C 100C 0.25C 1C or 0.1%

T -270~400C 100C 0.25C 1C or 0.1%

N -270~1300C 100C 0.4C 1C or 0.1%

PT100 / PT200

PT500 / PT1000

Cu50 -50~150C 50C 0.2C 0.2C or 0.1%

0~400Ω 10Ω 0.12Ω 0.1Ω or 0.1%

0~4000Ω 100Ω 1Ω 1Ω or 0.1%

mV / +80mV ~ -80mV 3mV 12uV 0.10%

Volt / 0~1V 100mV 0.25mV 0.25mV or 0.1%

Ampere / 0~20mA 5mA 8uV 8uA or 0.1%

50C 0.15C 0.2C or 0.1%

R /

TC

RTD -200~850C

Power s upply:

Power Supply 24VDC±10%

Power Consumption ≦ 1W

I/O capacity:

Input Types

4-20mA / 20-4mA;

RTD(PT100, PT200, PT500, PT1000, Cu50);

R(0-400Ω, 0-4000Ω);

TC(K, E, S, B, R, J, T, N);

mV(-80-+80mV);

V(0-1V)

Output signal types 0(4)-20mA

Response Time < 0.4ms (0-90%, 100%-10%)

Precision ±0.1%

Temp.

Drift 0.01% per Celsius

Volt fluctuation influence ±0.005% X span / below V DC

Load Capacity < 350Ω

Isolation :

Insulation Resistor

>100MΩ / 500V between the input /

output

Isolation Strength AC2500v 1min between the input / output

Other:

Ambient Temp.

/ Humi.

-40 ~ 85 C / ≦95% RH

Calibrating Ambient Temp.

25±2 C

Dimensions 113 X 109 X 17.5mm

Terminal Wiring Way Screw

Comm Interface Mini USB

Standard

EN61326 : 1997+A1:

1998+A2 : 2001+A3 : 2003

LED Indicator

Normally lighting indicates power supplied

and working normally, blinking indicates

digital communication is

under way.
