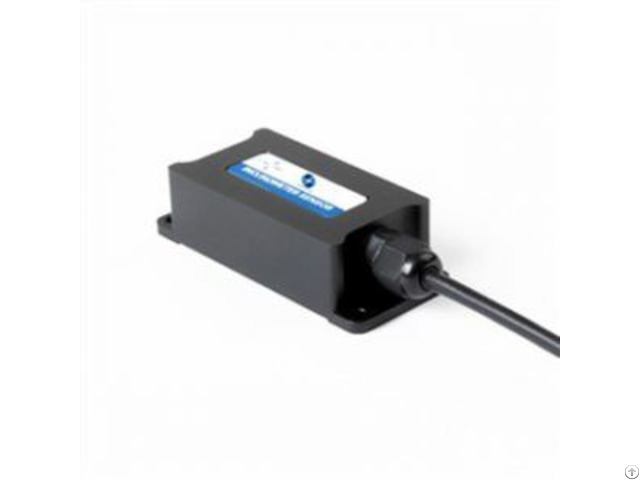

Small Size Digital Output Two Axis Tilt Sensor - China

ER-TS-4256DI1 Features:

1 - Biaxial tilt monitoring;

2 - Wide voltage input DC 9~36V;

3 - Full range accuracy 0.1°, resolution 0.01°.

Introduction

ER-TS-4256DI1 is a new generation of digital small volume MEMS tilt sensor, with built-in dual channel earth gravity tilt unit, which can be converted into inclination change by measuring static gravity acceleration.

Thus the tilt and pitch angle of the sensor output relative to the horizontal plane can be measured.

The output mode has RS232, RS485 or TTL, MODBUS level interface to choose from.

Due to the built-in MCU control system, the output linearity of the sensor has been corrected twice to make up for the loss of accuracy caused by the lack of analog correction.

The product adopts non-contact measurement original quantity, which can output the current attitude inclination in real time.

The operation is simple, and there is no need to retrieve the two sides of the change.

It can resist external electromagnetic interference and adapt to harsh industrial environment for long-term work, so it is an ideal choice for industrial automation control and platform attitude measurement.

It has strong resistance to external electromagnetic interference and can be adapted to work in harsh industrial environment for a long time.

Features Biaxial tilt monitoring

Full range accuracy 0.1°, resolution 0.01°

Industrial grade design

Wide voltage input DC 9~36V (5V can be customized)

Wide temperature working -40~+85℃

Range 0~±90°(optional)

High vibration resistance>3500g

The baud rate is adjustable from 2400~115200

IP67 protection level

Output RS232/RS485/TTL/MODBUS (optional)

Small volume (90*40*27mm) (customizable) Applications

High voltage power line tower pole monitoring

Satellite solar antenna positioning

Tractor, deep tillage machinery

Mining machinery, oil logging equipment

Medical equipment

Hydraulic lifting platform

Tilt based monitoring

Various construction machinery angle control

Inspection of bridges and dams
