Small Size Low Cost Fiber Optic Gyroscope - China

ER-FOG-60 (0.06~0.5º/h)

1 - Bias stability: 0.06~0.5º/h;

2 - Small size: Φ60mm×30mm;

3 - Light weight: ≤120g.

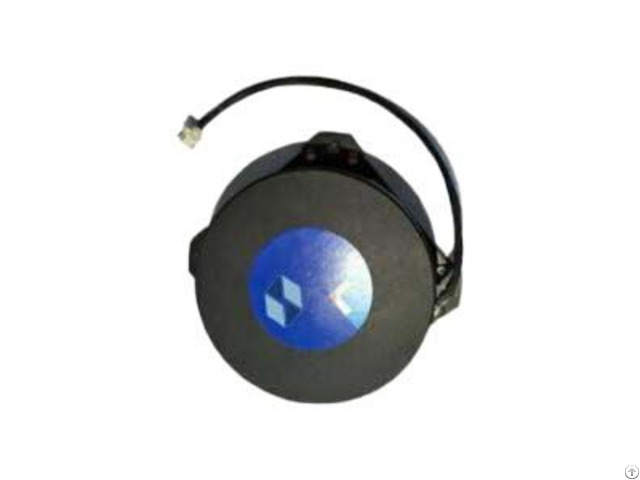

ER-FOG-60 Small Size Fiber Optic Gyroscope ER-FOG-60 small size fiber optic gyroscope is an important angular rate sensor, which has the characteristics of long life, fast start up, high precision, lower power consumption, wide dynamic range and so on.

It plays an important role in aerospace, weapon navigation, platform stabilizer, UAV and other fields.

Applications Small IMU、INS、missile seeker Servo tracking、photoelectric pod、drone Specifications Items Unit ER-FOG-60A ER-FOG-60B ER-FOG-60C ER-FOG-60D

Measuring range º/s -1000~+1000 -1000~+1000 -1000~+1000 -1000~+1000

Zero offset stability º/h ≤ 0.06 ≤0.1 ≤0.3 ≤0.5

Zero bias repeatability º/h ≤ 0.06 ≤0.1 ≤0.3 ≤0.5

Random walk coefficient º/√h ≤ 0.006 ≤0.01 ≤0.03 ≤0.05

Scale factor non-linearity ppm ≤ 50 ≤60 ≤70 ≤100

Scale factor repeatability ppm ≤ 50 ≤ 60 ≤70 ≤100

Scale factor asymmetry ppm ≤ 50 ≤60 ≤70 ≤100

Start time s ≤1 ≤1 ≤1 ≤1

Bandwidth Hz >200 >200 >200 >200

Power supply V -5~+5 -5~+5 -5~+5 – 5~+5

Power W <4w <4w <4w <4w

Operating temperature ℃ -45~+65 -45~+65 -45~+65 -45~+65

Storage temperature ℃ -45~+85 -45~+85 -45~+85 -45~+85

Vibration / 2g (RMS), 20Hz~2000H

Shock / 40g, 1ms 40g, 1ms 40g, 1ms 40g, 1ms

Output method / RS-422 RS-422 RS-422 RS-422

Connector / J30J-15TJL/Color line

Dimensions mm Φ60×30 Φ60×30 Φ60×30 Φ60×30 Note: Unfilled dimensional tolerances are performed in accordance with GB/T 1804-2000 Class C.
