23Z356SMFNL SMD Ethernet Magnetic Transformers Discrete Magnetic Transformer PRODUCT DETAILS: # ROHS COMPLIANT.

# HEADER : PHENOLIC WITH FLAMMABILITY RATING UL 94V-O OR BETTER.

# STORAGE TEMPERATURE : -20 TO +125 # COMPLIANCE TO J-STD A.

J-STD-002: SOLDERABILITY AT 245 REFLOW PROFILE B.

J-STD-020: LEVEL 1, NO MOISTURE SENSITIVE C.

J-STD-075: R7, 245 MAXIMUM THROUGH REFLOW SOLDER ELECTRICAL CHARACTERISTICS AT +25 UNLESS OTHER SPECIFIED - - - - PARAMETER | SPECIFICATIONS | OPERATING TEMPERATURE | 0 TO +70 | POLARITY | PER SCHEMATIC | TURNS RATIO | ( 1-3 ): ( 16-14 )=1CT: 1CT5% ( 6-8 ): ( 11-9 )=1CT: 1.41CT5% | INDUCTANCE(OCL) | ( 1-3 ) = 160 uH MIN ( 6-8 ) = 160 uH MIN.

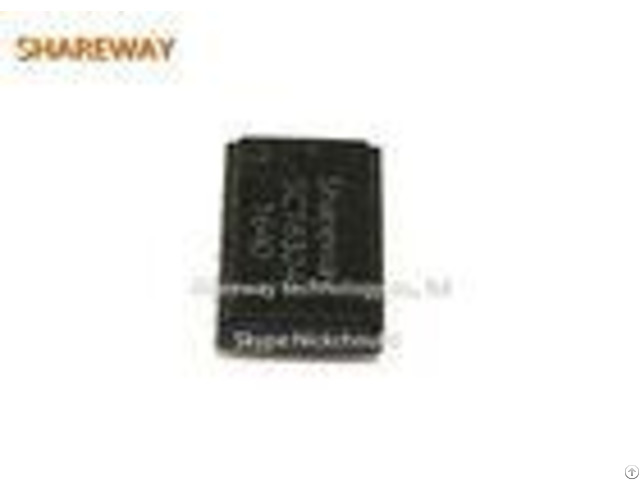

(AT 10 KHz 20 mVRMS) (16-14 )- 15 =68 uH MIN | COUPLING CAPACITANCE | 12 pF MAX ( AT 100KHz, 20 mVRMS ) | IMPEDENCE ( 9-11 ) -10 | 10-20 MHz | 30 MHz | 70-100 MHz | 700 OHM MIN | 600 OHM MIN | 200 OHM MIN | SRF | ( 9-11 )-10 = 7.5 MHz MIN | INPUT - OUTPUT ISOLATION | 1500 VRMS FOR 60 SECONDS | - - - - 23Z356SMFNL SMD Ethernet Magnetic Transformers Discrete Magnetic Transformer PRODUCT PICTURE 23Z356SMFNL SMD Ethernet Magnetic Transformers Discrete Magnetic Transformer HOW TO ORDER 1 - Please send me your datasheet or part number you need.

2 - We will offer the replacement quotation for your reference 3 - The free samples are available for your approval.

4 - After sample testing, we will step into the mass order.

5 - The Proforma Invoice will send for your confirmation 6 - After the goods finished, we send the goods to you and tell you the tracking number.

7 - We will track your goods until you receive the goods.

Remarks: 1 - Sample orders are avaliable.

2 - Price is negotiable for orders of large quantity.

3 - Customized orders (OEM/ODM orders) are avaliable.

4 - Contact us for available flavors list.

International Certifications: 1 - ISO9001: 2008 2 - UL 3 - Reach 4 - RoHs Our service: 1 - 100% tested before shipping 2 - Have alternative for Halo, Pluse, Wurth, We-online, Chilisin, CoilcraftSame quality but better price 3 - Free sample available 4 - Provide new design for customer
