Smj 24v 22mm Diameter High Precision And Long Lifetime Maxon S Replacement Brushed Dc Servo Motor - China

price: 69.00 Dollar US$

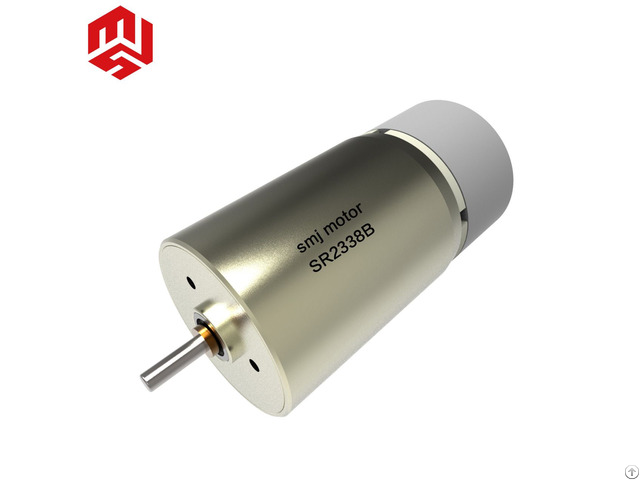

Smj 24v 22mm Diameter High Precision And Long Lifetime Maxon S Replacement Brushed Dc Servo Motor

Products Photos Catalog Smj 24v 22mm Diameter Photos Catalog

Series: SR2238B

SMJ 24V 22mm diameter high precision and long lifetime Maxon's replacement brushed dc servo motor Warranty: 3months-1year


Place of Origin: Shanghai, China

Brand Name: SMJ

Usage: Electric Bicycle, robots, AGVS, Medical machines

Type: SERVO MOTOR

Torque: 5mNm

Construction: Permanent Magnet

Commutation: Brush

Protect Feature: Totally Enclosed

Speed(RPM): 4650-8840rp m

Continuous Current(A): 0.14-0.65A

Efficiency: IE 1

brush type: graphite brushes

norminal torque: 5mNm

stall torque: 11.9-28.6mNm

diameter: 22mm

length: 37.8mm

Certification: CE


Company Contact:


  • Phone: +8618918851907

  • Address: No.1-2 Lane 330 Rongbei Road, Songjiang Distric, Shanghai , Shanghai , China

  • Email: Email

Published date: June 1, 2023

  • Business Description: Shanghai Mindong Mechanism Electron Co., Ltd is a Japanese leading developers and producers of high performance motors.

    Mindong was founded in 2004 which is a professional manufacturer of ironless linear motors, brushed DC motors and related accessories.

    For more than 18 years research, development and innovation, the quality of our high end motors is comparable with top products of the world.

    Also Mindong still can give customize medium end OEM solution.

    About our factoryMindong can serve customer specific solutions.

    We promise we will give customers same products grade for sample and bulk order.

    Quality is tradition at Mindong, our engineers make long-term mechanical stress tests to correct possible weaknesses under real load.

    As a Japanese organization, we have built on advanced and pragmatic management philosophy and strict quality control flow.

    We are committed to serving our customers through innovation, profession and the high quality system solutions.
