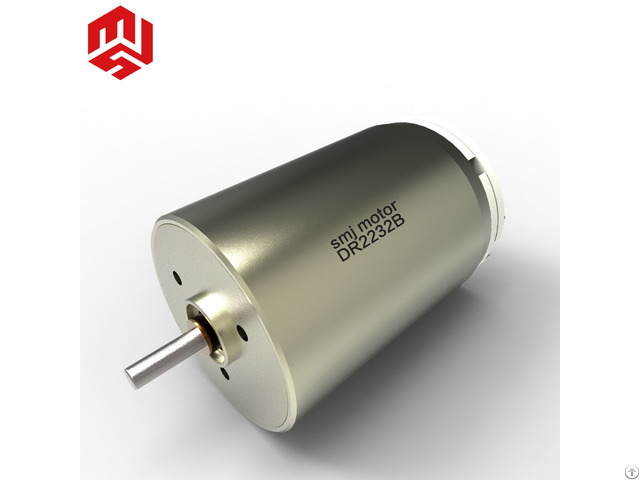

Smj Qualified Brushed Coreless Rotary Dc Motor - China

Series: DR2232B

SMJ qualified brushed coreless rotary DC Motor Warranty: 3months-1year


Place of Origin: Shanghai, China

Brand Name: SMJ

Usage: BOAT, Electric Bicycle, SMART HOME, healthcare industry

Type: Brush Motor

Torque: 7mNm

Construction: Permanent Magnet

Commutation: Brush

Protect Feature: Totally Enclosed

Speed(RPM): 7430rmp

Continuous Current(A): 0.14-0.65A

Efficiency: IE 1

Torque max: 7mNm

Stall Torque: 24.4mNm

Diameter: 22mm

Length: 31.9mm

Motor type: coreless

Brush type: graphite brushes

certification: CE DC brushed motor (coreless) application:

1 - The healthcare industry: They can be used to power dialysis pumps, CPAP machines, surgery tools, and ambulatory infusion pumps.

2 - Robotics: Engineers install them in positioning systems and small wheel systems in robot projects.

3 - Automation & Actuators: These motors can be used in precise automation systems and high accuracy actuators.

4 - Laboratories: Engineers can use it to drive small but effective equipment such as pumps, stirrers, and centrifuges.

5 - Office equipment: Thanks to their small size, effective motors can be installed in printers, card readers, and other office

equipment, without the need to make the products bigger.

6 - Audio/visual equipment: Pan and tilt drives for cameras & audio turntables can be fitted with effective motors that work quietly.

Company Contact:

• Posted By: Shanghai Mindong Mechanism Electron Co., Ltd

• Phone: +8618918851907

• Address: No.1-2 Lane 330 Rongbei Road, Songjiang Distric, Shanghai , Shanghai , China

• Email:

• Business Description: Shanghai Mindong Mechanism Electron Co., Ltd is a Japanese leading developers and producers of high performance motors.

  Mindong was founded in 2004 which is a professional manufacturer of ironless linear motors, brushed DC motors and related accessories.

  For more than 18 years research, development and innovation, the quality of our high end motors is comparable with top products of the world.

  Also Mindong still can give customize medium end OEM solution.

  About our factoryMindong can serve customer specific solutions.

  We promise we will give customers same products grade for sample and bulk order.

  Quality is tradition at Mindong, our engineers make long-term mechanical stress tests to correct possible weaknesses under real load.

  As a Japanese organization, we have built on advanced and pragmatic management philosophy and strict quality control flow.

  We are committed to serving our customers through innovation, profession and the high quality system solutions.
