Sms Unit Iot Gateway Device Modbus Protocol Accepted With Double Watchdog - China

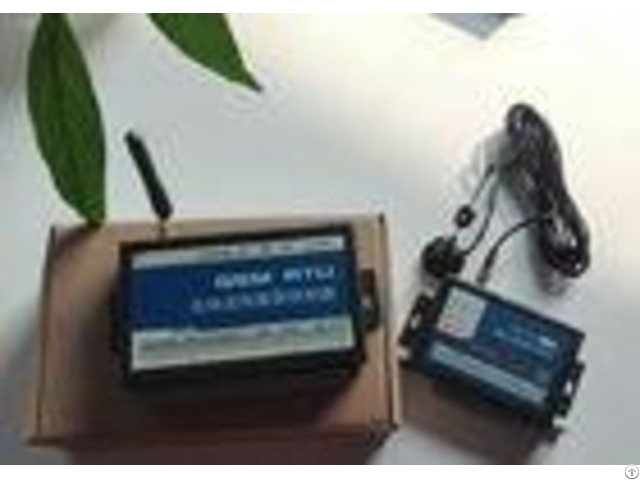

CWT5015 GSM SMS IOT Gateway Unit, Internet of Things and Industrial Automation CWT5015 RTU with 2 DI, 3 DO, 1 AI, RS232 standard electrical interface can connect various industrial equipment, such as PLC, meters, sensors, electrical switches System Feature # Industrial NXP 32-bit ARM MCU # Double watchdog to ensure stability # With signal filtering mechanisms # Support automatic network reconnection and data re-send # Synchronize clock with multiple way, Sms, NTP, CwtIO Server # Configurable action schedule(second, minute, day, week, month) # Can automatically execute tasks according to preset Events # Easy used GUI configure software for setting up to 100 parameters # Optional inside lithium battery for power lost alarm and keep 8-20 hours working DI feature # Accept NO or NC dry contact DO(T) feature # Transistor output(drive voltage=power supply voltage, Drive current500mA) # on/off/pulse DO by remote control or local event # Status memory function for power lost DO(K) feature # Relay NO contact output(load: 2A / 125VAC, 220VDC) # Remote or local event activate DO on/off/pulse # Remain down status when power lost AI feature # Accept 4-20mA (option: 0-5V), Sampling frequency: 33Hz, 10-bit precision) # Transduce 4-20mA(0-5V) to actual value # Support offset and gain, alarm parameters, upload data setting # Sensor disconnect alarm SMS feature # Preset 10 phone numbers (support distribute authority to receive sms) # Sms alarm when any IO channel triggered or out of preset normal range # Editable alarm and recover sms with time stamp # Remote get device status or value by sending sms command # Control output via sms command # Configurable schedule for sms report IO channel's status or value # Remote setting via sms commands # Sms remind for sim card overdue # Sms alar for power lost and recover # Wireless network communication # With 2g, 3g, 4g, Wi-Fi version # Communicate with up to 4 servers(IP or domain) by TCP/IP # Events(e.g. alarm, timer) trigger upload data # Communicate with server by optional Cwt_IO, Modbus TCP, http post protocol # Support two-way data transparent transmission with RS485 or RS232

Company Contact:

• Posted By: CWT(HK) Co., Limited

• Phone: 86-755-26719943

• Address: 7/F, Block A, Building F1, TCL International E City, No.1001 Zhongshanyuan Road, Nanshan District, S, Shenzhen , Guangdong , China

• Email:

• Website: https://www.iotgatewaydevice.com

• Business Description: Whatever term you use for Telemetry, whether it's remote monitoring, M2M, Machine2Machine, Machine2Man or even Man2Machine then CWT wire free telemetry products will serve you well.

  Our Telemetry Solutions have been designed with the user in mind, so they are cost-efficient, easy to configure and in
