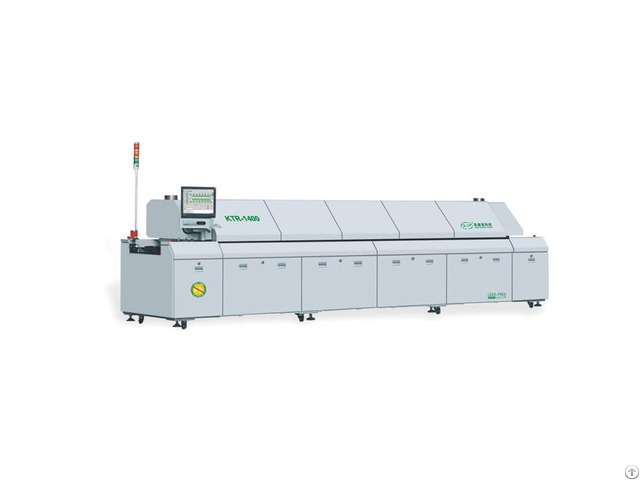

14 Zones SMT Reflow Oven KTR 1400

14 heating zones

3 cooling zones

Weight Approx: 3600kg

Dimension 7700*1430*1530mm

Product description: 14 Zones SMT Reflow Oven KTR 1400, 14 heating zones, 3 cooling zones, Weight Approx: 3600kg, Dimension 7700*1430*1530mm

14 Zones SMT Reflow Oven KTR 1400 Specifications: Features: 1 - Reinforced main hanging bracket to guarantee there is no deforming and board jamming occurred.

2 - The long heating passage offer more stable heating increasing profile, more good for nowadays temperature sensitive chips.

3 - 15% heat transferring efficiency was improved to deal with the lead free process with more complicated and larger products.

4 - New cooling configuration to make the filtered or reclaimed air back to oven chamber, it reduced the thermal loss as well as get better flux reclamation.

5 - User the full protection of the sealed oven design to prevent N2 and O2 from losing effectively.

So the lowest concentration of N2 and O2 can be reached to 150 PPM.

6 - When Concentration of oxygen is 300-800 PPM, consumption is only 20-22M3/H.

Model KTR-1400 Control Industrial computer Heating zones qty.

Top 14, bottom 14 Cooling zones qty.

Top 3, bottom 3 Heating zone length 5375mm Rectifying plate Thick copper plate Weight Approx: 3600kg Dimension 7700*1430*1530mm Exhaust capacity 11㎡/min×2 Color Grey Control system Electricity supply 3P 380V/220V 50/60HZ Temp.

control range Room temp.

～300℃ Total power 104KW Temp.

control accuracy ±1℃(static state) Start power 45KW Temp.

control method PID +SSR drive+ PLC Consumption power 12KW PCB temperature deviation ±1.5℃ Speed control 3 Inverters adjust Data save All profiles can be saved Warm up time Apprx.

30minute Abnormal alarm High, low temp.

alarm Conveying system Rail structure 2 sectional rails Rail fixed method Front fix Chain structure Stainless steel, stuck-free type Conveying height 900±20mm PCB Max.

width 50-400mm Conveying method Mesh+ chain+ rail Component height Top/bottom 30mm Conveying speed 300-2000mm Conveying direction Left to right Lubrication Automatic Cooling system Cooling method Forced air cooling Heating features Heating zones Top 14, bottom 14(5375mm)can meet the need of the peak lead-free technique.

Cooling zones After cool down by forced air, PCB temp.

is ≤70℃ at the exit.

Warm up time From the normal temp.

to set temp, approximate 30 minutes.

Warm up sequence Warm up from two side, save the power and time Profile transfer time ＜15min Heating zone temp.

control accuracy ±1℃ PCB temp.

deviation ±1℃ Empty to full load heat balance respond time ≤20
