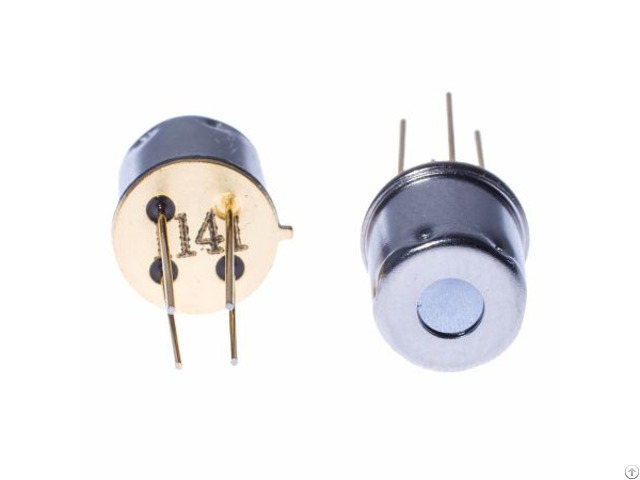

Smtir9901 02 Sophisticated Full Silicon Infrared Temperature Sensor - China

price: check with company for price

Infrared sensors smtir9901/02 infrared temperature sensor smtir9901/02 typical applications

• contactless measurement of surface temperatures or infrared radiation

• temperature measurement on moving objects

• continuous temperature control of manufacturing

• thermal alarm systems

• climate control

• medical instruments

• home appliances infrared temperature sensor smtir9901/02 features

high accuracy

high sensitivity (110 v/w)

low resistance (50 kΩ) and therefore

very good signal-to-noise-ratio

good response time (40 ms)

low cost thin film technology infrared temperature sensor smtir9901/02 introduction

the smartec infrared sensors smtir9901 and smtir9902 are sophisticated full silicon infrared sensors which can be used in measuring the radiation temperature without any contact.

for the different radiation temperature ranges various filters are available.

the sensor type smtir9902 contains a temperature sensor for measuring the temperature of the sensor itself.

the temperature range of the sensor-element is between - 40 to 100 ºc.

the sensor is available in a standard to-05 encapsulation and with a 5.5 - µm.

high pass filter.

easy and accurate measuring of the sensors temperature by means of a built-in temperature sensor (only for type smtir9902).
