So2 Af Sulfur Dioxide Sensor - China

price: check with company for price

So2 Af Sulfur Dioxide Sensor

Products Photos Catalog So2 Sulfur Dioxide Photos Catalog

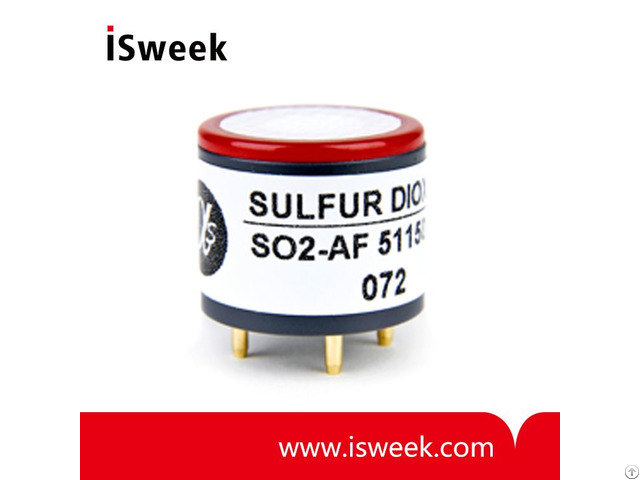

SO2-AF Sulfur Dioxide Sensor SO2 Sensor Description

Alphasense Sulfur Dioxide gas sensors operate using proven fuel cell technology.

/

SO2-AF Sulfur Dioxide Sensor size:

20mm diameter, the industry standard size for portable gas detectors

/

The SO2 range provides OEMs with reliable sensors for use in a variety of applications.

Strong signal levels combined with low zero current allows resolution below 1ppm and an operating range for safety applications up to 2, 000ppm.

The sensors are designed for use in both fixed site and portable instrumentation.

/

The SO2 sensors offer our electrolyte leak-free guarantee and reliable long-term detection performance.

The leakproof housing is moulded with a colour coded top for ease of identification.

/

SO2-AF Sulfur Dioxide Sensor SO2 Sensor Specifications

• Range: 50ppm limit of performance warranty

• Sensitivity: 300 to 550​ nA/ppm in 10ppm SO2

• Response time t90: < 35 (s) from zero to 10ppm SO2

• Resolution: < 0.1 RMS noise (ppm equivalent)

• Operating life: > 24 months

• Temperature range: -30 to 50​ °C​

• Pressure range​: 80 to 120​ kPa

• Humidity range​: 15 to 90 % rhcontinuous​

• Weight: < 6g

/

Matched Transmitter board for SO2-AF SO2 Sensor

4-20mA Digital Transmitter Board • Factory calibration, custom-set for immediate use • Digital zero, sensitivity and temperature compensation • Digital and 4-20mA output • Biased or unbiased operation • Calibration and range change
