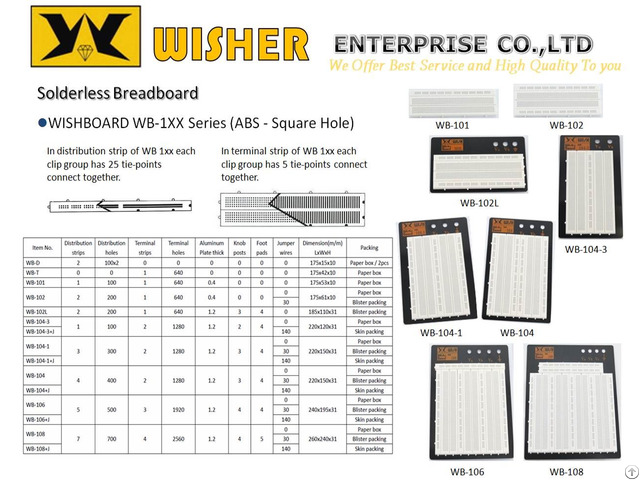

Solderless Breadboard Wishboard Wb 1xx Series Abs Square Hole - Taiwan
price: contact company for price
Features
(1) Board body made by advanced ABS material.
The insertion hole is hardly deformed when sustaining continuous insert and pull out.
(2) Square insertion hole design with straight arrangement.
(3) Coordinates molded in white convex character, Arabic numbers in row and column.
The operator can recognize and calculate easily.
(4) Spring contact uses phosphor bronze/nickel-plated with highly elasticity and good conductive ensuring reliable connections, it can stand operation more than 10, 000 times.
(5) It accommodates all sizes of DIP IC and discrete components with diameters 0.65±0.1m/m, interconnect wires 20-28AWG(ø0.3-ø0.8mm).
(6) Allowed more application of DIP IC pins insertion.
The pin of DIP chips can be crossed without interfere with each other when proceeding test.
(7) Durable aluminum base plate treated with a special coating to avoid static electricity
(8) WB-1xx series is the most popular series for beginners and students of electronics-related department.
Trade term & delivery
Quotes are based on f.O.B Taiwan port us$
Payment term: T/T in advance
Delivery: Within 2~3 weeks after receipt of T/T(wire transfer)
--- O.E.M.
/O.D.M orders are welcome ---
Company Contact:
- Posted By: Wisher Enterprise Co., Ltd.
- Phone: +886227191369
- Address: 4F-2, No.333, Fu-Hsing N.Rd. , Taipei City, Taiwan , Taiwan
- Email:
- Website: http://www.wishmaker.com.tw/
Published date: June 27, 2017 - Modified date: June 27, 2017
- Business Description: Wisher Enterprise Co., Ltd. was founded in 1978, has specialized in professional design, mass production and O.E.M.
/O.D.M.
for Solderless Breadboard, connectors, IC sockets, several computer peripheral components as well as educational training equipments with relevant fields.
Wisher is well known for high-quality products which are 100% Made In Taiwan,superior series of products, and reliable quality control have enabled us to earn an outstanding reputation as a leading company in the manufacturing industry.
With these advantages, our products are well received by customers, vendors and professional users all over the world.
Wisher's products are all comply with environmental RoHS regulations and remained absolutely stable in order to achieve the ultimate performance.
Engaged in more than 30 years in this highly competitive industry so far, we keep dedication to combine with professional knowledge and technical cooperation to provide the best quality and most competitive price for customers.
