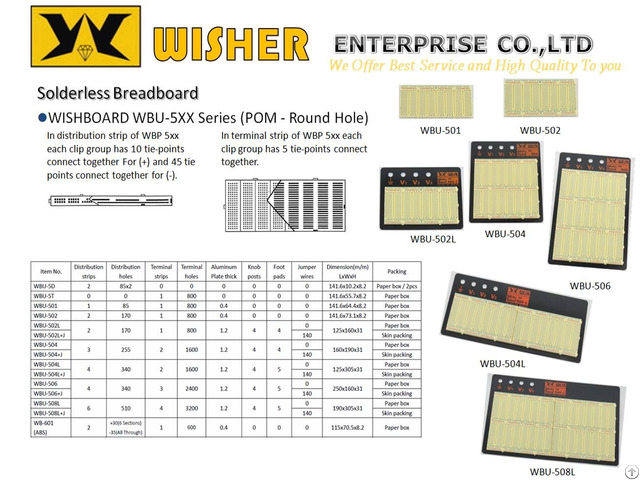

Solderless Breadboard Wishboard Wbu 5xx Series Pom Round Hole - Taiwan

Features

(1)Advanced POM material make the insertion hole is hardly deformed when sustaining continuous Insert and pull out.

Static electricity and frequency interference is precluded also.

(2) Round pin jacks help component's pin to insert and fit perfectly.

Components plug-in and replacement is easy and convenient with good conductive.

(3) A landscape arrangement for easy of assembly operation.

Conform the work flow of PC board.

(4) The power distribution strip provide 4 sections of anode for using different voltages at the same time.

45 junctions provided for negative circuit.

(5) Delicate printed coordinates for easy recognition and calculation.

(6) Spring contact uses phosphor bronze/nickel-plated with highly elasticity and good conductive

ensuring reliable connections, it can stand operation more than 10, 000 times.

(7) It accommodates all sizes of DIP IC and discrete components with diameters 0.65±0.1m/m, interconnect wires 20-28AWG(ø0.3-ø0.8mm).

(8) Design of protrusion tail and latch groove keep the two adjacent boards mating together tightly(A perfect distance from one board to another).

A V-shape cross section groove allows DIP IC to insert which increase the rate of utilization.

(9)Max.

allowable voltage/current: 48Volts/5 Amps.

Trade term & delivery

Quotes are based on f.O.B Taiwan port us$

Payment term: T/T in advance

Delivery: Within 2~3 weeks after receipt of T/T(wire transfer)

--- O.E.M.

/O.D.M orders are welcome ---
