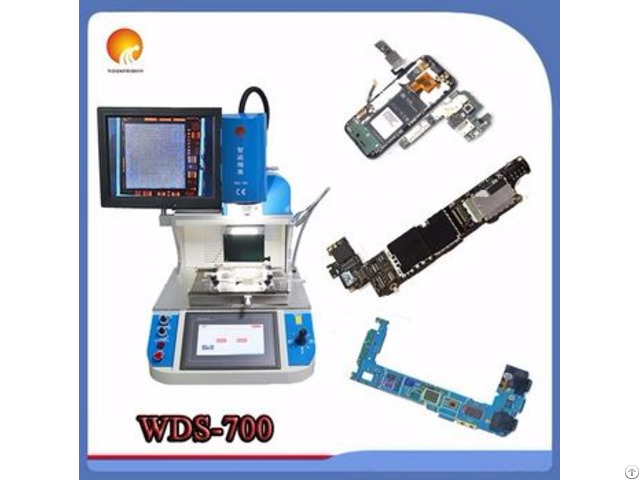

Sole Manufacturer Optical Alignment Bga Rework Station Wds 700 Automatic Mobile Phone Repair Machine - China

Specifications:

1 - WDS-700 bga rework station

2 - Optical alignment

3 - Automatic machine

4 - MCGS touch screen

5 - CE, ISO passed

6 - Small size

Optical alignment bga rework station WDS-700 automatic mobile phone repair machine for galaxy note 4 emmc

Skype: salesool-wisdomshow

WhatsApp/Wechat/Cell: + 86 15573072473

WDS-700 bga rework station video:

https: //youtu.

be/pmHfF48dRrY

Product Description

Parameter of WDS-700 automatic mobile phone repair machine

Place of Origin: Guangdong, China

Brand Name: Wisdomshow / WDS

Moed Number: WDS-700 iPhone chip remove machine

Superior function: Soldering and desoldering BGA Chip/Mini IC

More details Parameter of WDS-700 automatic mobile phone repair machine

1 - Business type: BGA rework station factory

2 - Power supply: AC 220V±10% 50/60Hz

3 - Total power: Max 2500W

4 - Heater power: Upper temp.

zone 1200W, Down temp.

zone 1200W

5 - Electrical material: Driving motor+PLC smart temp.

controller+color touch screen

6 - Temperature controlling: (high precision K-sensor)(Closed Loop), independent temp.

controller, the precision can reach ±1℃

7 - Locating way: V shape slot, PCB support jigs can adjust

8 - PCB size: Max 140×160mm Min 5×5 mm

9 - Applicable chips: Max 80×80mm Min 1×1 mm

10 - Overall dimension: L450×W470×H67 0mm

11 - Temperature Interface: 1 pcs

12 - Weight of machine: 30KG

13 - Color: Blue+White


Full Specification of WDS-700 autoamtic mobile phone repair machine

***Independent 2 heating zones temperature control system

1 - The upper and lower heating zone, temperature precision control within ±1℃.

which can heat up at the same time from the top of he component to the bottom of the PCB; 8 segment temperature control independently.

automatic mobile phone repair machine

2 - Hot air district heating for BGA and PCB at the same time, the upper or lower temperature zones could be used alone and combine freely the energy of up and lower heating element.

3 - Adopted high precision K-type thermocouple close-loop control and PID parameter self-setting system;

4 temperature curves can be displayed with instant curve analysis function and multi-group user data can be saved;temperature can be tested precisely through external measurement interface, curves can be analysed, set and correct on the touch screen at any time.

iphone glued ic repair machine

***Precision optical alignment system

Using high definition and adjustable CCD color optical alignment system, beam split, amplification, lessening, fine adjustment and auto focus with the function that automatic color aberration resolution and brightness adjustment, adjustable image contrast;equipped with 15 ” high definition LCD monitor.

***Multi-functional and humanized operation system

1 - Adopting the HD touch human-machine interface;upper heating head and mounting head designed 2 in 1;providing many kinds of titanium alloy BGA tuyere can be rotated in 360 degree for easy installation and replacement.

2 - X, Y and R angle adopted micrometer fine-tuning, accuracy locating, precision can reach ±0.01mm.

***Superior safety protection function

With alarm function, after the BGA welding the machine can alarm by itself.

In the case of temperature abuse, the circuit can power off automatically with the double over-temperature protection.

Temperature parameter having password protection to prevent any modification.

automatic mobile phone repair machine

***Higher automatic function

Newest WDS-700 is the updated system with 5 modes.

It’s Remove, Mount, Weld, Manual and Semi-auto.

The mode can be changed freely.

It can be used under automatic, semi-auto & manual mode.

automatic mobile phone repair machine

Packaging & Shipping

1, Standard export wooden package for BGA rework station;

2, Delivery in 2 workdays after payment confirm;

3, Shipping by TNT, UPS, DHL, FEDEX, EMS or by air or by sea;

4, Loading port: Shenzhen or Hongkong

Company Information

Manufacturer: Shenzhen Wisdomshow Technology Co., Ltd

Brand: WDS/wisdomshow

Address: No.

6 Haosi Western Industrial Park, Shajing Town, Bao'an District, Shenzhen, China

Main Product: BGA rework station, many models are available

Contact: Skype: salesool-wisdomshow

WhatsApp/Wechat: +86 15573072473

Any other questions, Pls send INQUIRY, or CHAT with us, we will try our best to help you.
