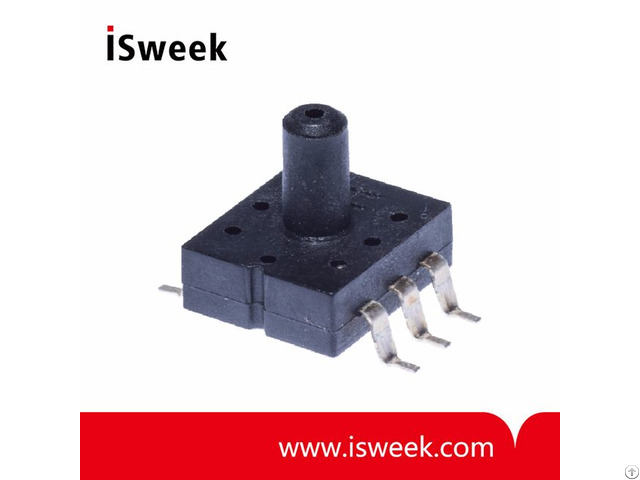

Spd005gasmd 5 Psi Gauge Pressure Sensor With Analogue Output - China
price: check with company for price
SPD005GAsmd 5 psi Gauge Pressure Sensor with Analogue Output Description
This pressure sensor has an amplified analogue output.
The sensor is compensated for offset, sensitivity, temperature drift and nonlinearity.
/
The sensor is available in the range from 5 to 100 psi.
Other ranges on request.
Available in Gauge and Absolute type.
The output is ratiometric to the power supply voltage.
@ 5 V power voltage the output span is 0.5 to 4.5 V.
The SPD analogue series can be considered as an “analogue” successor of the SPD series.
/
SPD005GAsmd 5 psi Gauge Pressure Sensor with Analogue Output Electrical Characteristics
Performance Characteristic at Vcc =5V excitation @ 25°C.
• Supply Voltage: 4.75~5.5V • Supply Current: Max.
3mA • Pressure range: 0~5psi • Accuracy: ±1.8%FS • Operating temperature: -20~85°C • Storage temperature: -40~125°C
Company Contact:
- Posted By: Shenzhen week Technology Ltd
- Phone: 86-0755-83289036
- Address: 16 Floor, Building #3, Zhongke Mansion, Gaoxin South 1st Rd, Hi-Tech Park, Nanshan, Shenzhen , Guangdong , China
- Email:
Published date: November 3, 2017
- Business Description: ISweek has been devoted to providing one-stop product distributing and purchasing solution and service for purchasers, suppliers, traders and manufactures from all over the world in industrial science and technology industry.
We are able to provide high-quality original products and thorough technical support and after-sale service to our member users.
