Spd100aa 100 Psi Absolute Pressure Sensor With Analogue Output - China

price: check with company for price

Spd100aa 100 Psi Absolute Pressure Sensor With Analogue Output

Products Photos Catalog Spd100aa 100 Psi Photos Catalog

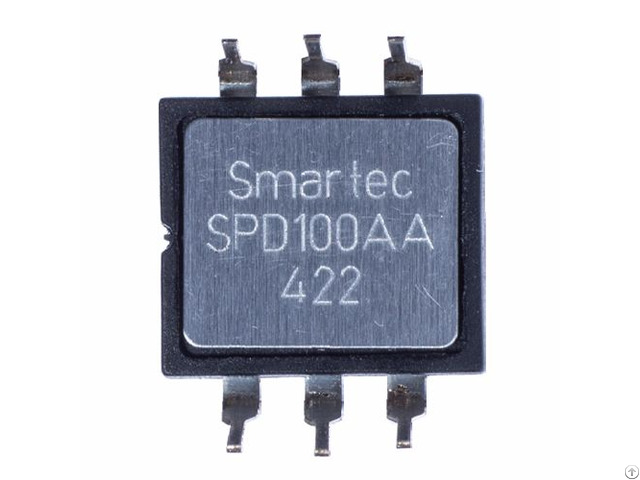

SPD100AA Absolute Pressure Sensor

/

This Smartec pressure sensor has an amplified analogue output.

The sensor is compensated for offset, sensitivity, temperature drift and nonlinearity.

/

The sensor has a range of 100 psi absolute.

Other ranges can be delivered on request.

The output is ratiometric to the power supply voltage.

At 5 Vcc the output span is 0.5 to 4.5 V.

/

SPD100AA Absolute Pressure Sensor Electrical Characteristics

Supply Voltage: 4.75 to 5.25V

Supply Current: 3mA

Pressure range: 0 - 100psi

Operating temperature: -20 ~ 85°C

Storage temperature: -40~125 °C
