Spd100absmd8 100 Psi Absolute Gas Pressure Sensor With Bridge Output - China
price: check with company for price

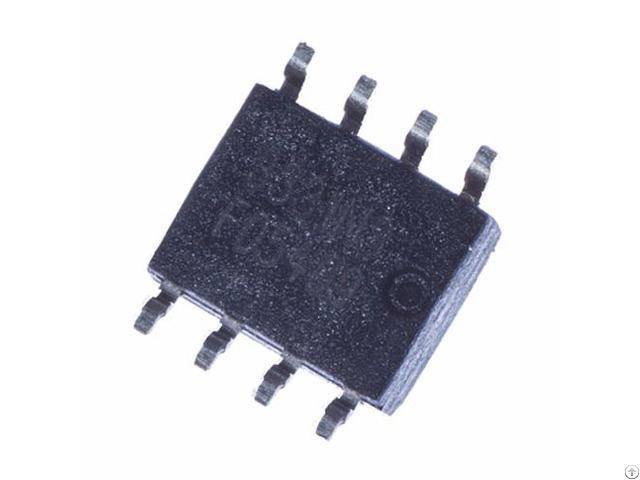

SPD100ABsmd8 Pressure Sensor
/
GAS PRESSURE SENSOR FOR ABSOLUTE TYPE MEASUREMENT IN SO8
The SPD100ABsmd8 series SPD Absolute Pressure sensors are designed for gas pressure sensitive applications and are encapsulated in a miniature Smd8-pins package.
This sensor provides a low-cost solution for high volume applications.
Due to automatic production price is very low and nearby the price of a bare die without the need for the customer to handle dies by bonding, etc.
Other pressure ranges on request available.
/
SPD100ABsmd8 Absolute Gas Pressure Sensor Electrical Characteristics
Excitation Voltage: 5V
Excitation Current: 1mA
Pressure range(N2): 0~100psi
Linearity: ±0.1%FS
Operating temperature: -40 ~ 125°C
Storage temperature: -50 ~ 135°C
