Spd300abto05 300 Psi Absolute Pressure Sensor With Bridge Output - China
price: check with company for price

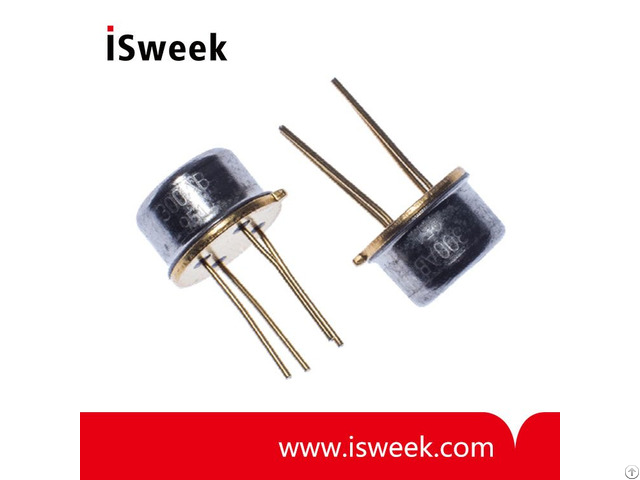

SPD300ABTO05 Pressure Sensor
/
A 20 Bar Absolute Pressure Sensor
This 20 bar absolute pressure sensor is specially designed for measuring the pressure of liquefied gasses (like l.g.p.
).
Using an Absolute type pressure sensor has a distinct safety advantage over a Gauge type pressure sensor for this type of applications.
/
In case of a malfunction of the membrane of a Gauge type pressure sensor a gas leak could occur.
Using an Absolute type pressure sensor completely circumvents this safety issue.
/
The trade-off is that the connecting wires carrying the electrical signals have to be run inside the pressurized container.
The TO5 metal can encapsulation is especially suited for mounting in a ruggedized brass fitting.
/
SPD300ABTO05 Absolute Pressure Sensor Electrical Characteristics
• Excitation Voltage: 0 ~ 10 V
• Excitation Current: 1.5 mA
• Offset: ±30 mV
• Linearity: ±1 .
0 %FS
• Bridge resistance: 2.7 ~ 4.0 kΩ
• Operating temperature: -20 ~ 85 °C
• Storage temperature: -40 ~ 150 °C
