Split Core 0 5s Current Transformer Output 0 333v - China

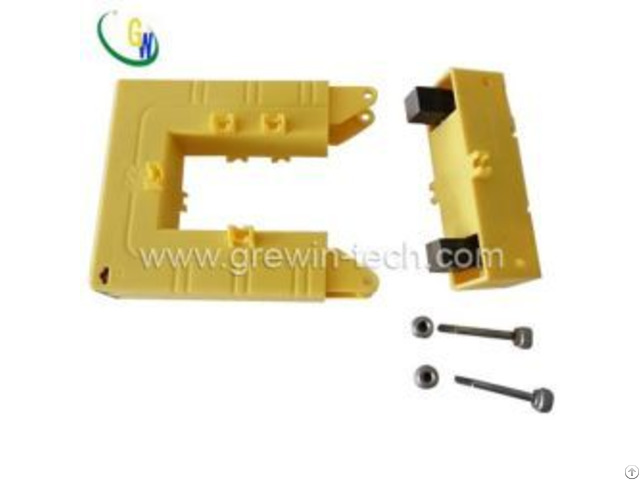

The GREWIN CTS series of split core current transformers

Are designed for fast and easy installation.

The split

Core design permits non-contact current measurements

Through magnetic field induction without requiring that the

Primary wire be taken offline and disconnected for CT

Installation.

This method permits a safer, easy and portable GWCTSB Series Split Core Current Transformer (Specifications)

Rated Primary current 100-5000Aac

Rated Secondary current: 5 or 1Aac Rated load 1, 2.5, 5.0, 10, 30VA

Accuracy 0.5, 1.0, 3.0 Class

Rated Short-time thermal current (Ith) 20In

Rated Dynamic current (Idyn) 2.5Ith

Case Material UL flame retardant rating 94-V0

Highest Voltage for Equipment Um (rms) 720 Vac

Rated Power-Frequency Withstand Voltage(rms) 3, 000 Vac Frequency Range: 50/60Hz

Operating Temperature -15ºC to 50ºC

Standard IEC 60044-1 Accessories Supplied with feet for base mounting if required

Certification RoHS compliant CE&ETL approved GWCTSB Series Split Core Current Transformer (Features)

Low cost

5 standard sizes

Split core design, safer, easier installation, and portable

GWCTSB Series Split Core Current Transformer (Applications)

Current, power, energy, monitoring devices

Relay protection devices

Power Factor Correction devices An internal precision burden resistor across the secondary

Winding of the CT provides a safe low voltage output and

Permits safe opening of the secondary.

Measures AC current flow to electric motors, lighting, air conditioning

Equipment, etc.

Compatible with HVAC temperature control, power

Management, building automation systems.

Rated Output: 0.333Vac

Accuracy: ± 1% from 10% to 130% of rated current

Phase Angle: Less than 2 degrees at 50% of rated current

Case Material: ABS Resin UL flame retardant rating 94-V0

Construction: Epoxy encapsulated housing

Insulation Voltage: 600Vac

Frequency Range: 50/60Hz

Operating Temperature: -15 to 60 Degree

Leads: 0.61m (2 Foot), UL 1015, Twisted Pair, 0.34mm² (22AWG), The length can be customized UL&CE recognized PARAMETER:

Output secondary 5A split core current transformer :

Model 1:

GWCTSB0203

Turn ratio: 100: 5A 150: 5A 200: 5A 250: 5A 300: 5A 400: 5A current transformer China

Model 2:

GWCTSB0508

Turn ratio: 250: 5A 300: 5A 400: 5A 500: 5A 600: 5A 750: 5A 1000: 5A split core transformer

Model 3:

GWCTSB0512

Turn Ratio: 600: 5A 750: 5A 1000: 5A 1250: 5A 1500: 5A 2000: 5A 3000: 5A current CT

Model 4:

GWCTSB0812

Turn ratio: 500: 5A600: 5A 750: 5A 1000: 5A 1250: 5A 1500: 5A split core China

Model 5:

GWCTSB0816

Turn Ratio: 500: 5A 600: 5A 750: 5A 1000: 5A 1250: 5A 1500: 5A high quality split core current transformer with ROHS, ETL approval.

Output secondary rated 1A split transformer : Model 1: GWCTSB0203

Turn ratio : 100: 1A 150: 1A 200: 1A 250: 1A 300: 1A 400: 1A split core CT

Model 2: GWCTSB0508

Turn ratio: 200: 1A 300: 1A 400: 1A 500: 1A 600: 1A 750: 1A 1000: 1A

Model 3: GWCTSB0512 Turn Ratio: 500: 1A 600: 1A 750: 1A 1000: 1A 1250: 1A 1500: 1A 2000: 1A 3000: 1A Model No: GWCTSB0812

Model No.

GWCTSB0816

Turn ratio: 600: 1A 750: 1A 1000: 1A 1250: 1A 1500: 1A 2000: 1A 2500: 1A 3000: 1A 4000: 1A split transformer ETL made in China GRWEIN'S Split core current Transformer Typical Products Part

Number Ratio Measuring Protection Frequency

(Hz) Outline

Dimensions

ID-L-W-H

(mm) pdf

Rated Input Accuracy

Class Rated Accuracy

Limit

Primary

Current

(A) Accuracy

Class CTGWSA005 3000: 1 5, 10, 15 1.0

3.0 -- -- 50~400 5.0

-25.0-22.5-34.5

CTGWSA010 5, 10, 20, 50, 75 1.0, 3.0 120 5P, 10P 50~400 10

-29.4-26.4-41.7

CTGWSA016 75, 100, 150 0.5, 1.0 300 5P, 10P 50~400 16

-36.9-39.2-52.9

CTGWSA024 100, 150, 200, 250 0.5, 1.0 540 5P, 10P 50~400 24

-51.2-47-70.2

CTGWSA035 200, 300, 400, 600 0.5, 1.0 600 5P, 10P 50~400 35

-65.8-51.2-83.5 Photograph Part

Number Rated

Input/Oput

(A) Frequency

( Hz ) Accuracy

Class Outline

Dimensions

(mm)
