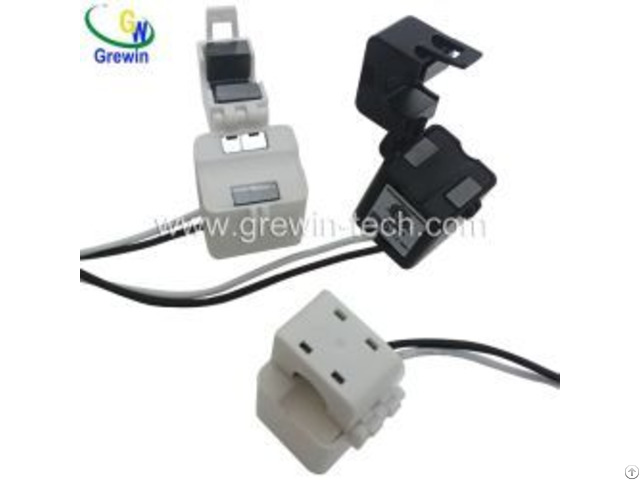

Split Current Transformer For Electrical Motor And Hvac 5 600a 0 333v - China

0.5-600A 0.333V Transformer Split with ETL5-600A 0.333V Split Current TIANJIN GREWIN TECHNOLOGY CO., LTD. GWCTSA series split core current transformer Part number Rated input(A) Second output(V) Accuracy class Limit primary current(A) Accuracy class Frequency(Hz) OutlineDimensions ID-L-W-H(mm) Unit weight Turn ratio Output cable GWCTSA005 5 10 15 0.333 1.0 3.0 - - 50-400 5.0-25.0-22.5-34.5 30g 3000: 1 wire(1m) GWCTSA010 5, 10, 20, 50, 75 0.333 1.0 3.0 120 5P 10P 50-400 10-29.4-26.4-41.7 50g 3000: 1 wire(1m) GWCTSA016 75, 100, 150 0.333 0.5 1.0 300 5P 10P 50-400 16-36.9-39.2-52.9 100g 3000: 1 wire(1m) GWCTSA024 100, 150, 200, 250 0.333 0.5 1.0 540 5P 10P 50-400 24-51.2-47-70.2 250g 3000: 1 wire(1m) GWCTSA035 200, 300, 400, 600 0.333 0.5 1.0 600 5P 10P 50-400 35-65.8-51.2-83.5 400g 3000: 1 wire(1m) 5-600A 0.333V Split Current Transformer for Electrical Motor and HVAC GWCTSA Series Split Core Current Sensor (Specifications) Rated Primary current 5-600A Rated Secondary current 0.333V-3.53V Rated load 1, 2.5, 5.0, 10, 30VA Accuracy 0.5, 1.0, 3.0 Class Rated Short-time thermal current (Ith) 20In Rated Dynamic current (Idyn) 2.5Ith Case Material UL flame retardant rating 94-V0 Highest Voltage for Equipment Um (rms) 720 Vac Rated Power-Frequency Withstand Voltage(rms) 3, 000 Vac Frequency Range: 50/60Hz Operating Temperature -15ºC to 50ºC Standard IEC 60044-1 Accessories Supplied with feet for base mounting if required Certification RoHS compliant CE&ETL approved GWCTSA Series Split Core Current Sensor (Features) Low cost 5 standard sizes Split core design, safer, easier installation, and portable GWCTSA Series Split Core Current Sensor (Applications) Measures AC current flow to electric motors, lighting, air condition equipment, etc.

Compatible with HVACtemperature control, power management, building The GREWIN CTSA series of split core ct style current sensors are designed for fast and easy installation.

The split core design permits non-contactcurrent measurements through magnetic field induction without disconnecting cables or busbar circuits for CT installation.

This method permits a safer, easier and portable current measurement.

0.333-3.53V rated secondary output split core current transformer : 5-600A 0.333V Split Current Transformer for Electrical Motor and HVAC Model No 1 : GWCTSA010

Ratio : 3000: 1

Rated input: 5A 10A 20A 50A 75A

Accuracy class: 1.0s 3.0s

Rated primary current : 120A

Protection: 5 times protection, 10 times protection like 25A 50A 100A 200A 250A 385A 500A 750A Model No.

2 : GWCTSA016

Ratio : 3000: 1

Rated input: 75A 100A 150A

Accuracy class: 0.5 1.0S

Rated accuracy limit primary current: 300A

Protection : 5 times Protection, 10 times protection 5-600A 0.333V Split Current Transformer for Electrical Motor and HVAC Model No.

3: GWCTSA024

Ratio : 3000: 1 Rated input: 100A 150A 200A 250A Accuracy class: 0.5 1.0S

Rated accuracy limit primary current: 540A

Protection : 5 times Protection, 10 times protection Model No.

4: GWCTSA035

Rated input: 200A 300A 400A 600A Accuracy class: 0.5 1.0S

Rated accuracy limit primary current: 600A

Protection : 5 times Protection, 10 times protection

Frequency: 50--400Hz

5-600A 0.333V Split Current Transformer for Electrical Motor and HVAC
