Spring Loaded Connector Pogo Pin Test Probe P100 For Pcba Inspection - Hong Kong
price: contact company for price
Spring Loaded Connector Pogo Pin Test Probe P100 for PCBA Inspection In-circuit test probes are mainly used for testing electrical performance of in-circuit components on PCB and the connection between circuit networks.
It could quantitatively measure components such as resistors, capacitors, inductors, crystal oscillators, and perform functional tests of diodes, triodes, optocouplers, transformers, relays, operational amplifiers, power supply modules and integrated circuits.

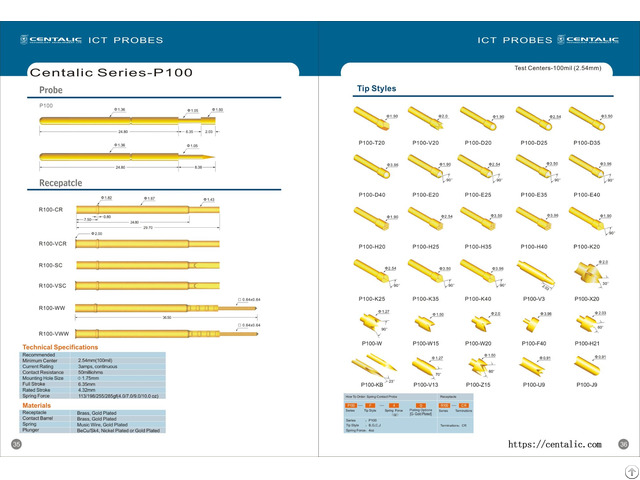

We will introduce in-circuit test probe P100 series here.
Its test center is 100 mil.
The diameter is 1.36 mm and the total length is 33.18 mm.
Various tip styles, for example, A, B, U, H, K, L, BK, etc., are available for test probes.
There are roughly six types of receptacles, namely CR, VCR, SC, VSC, WW and VWW, to fit each test probe.
For details, please check below parameters.
Technical Specifications
Recommended Minimum Center: 2.54 mm (100 mil)
Current Rating: 3 Amps, continuous
Contact Resistance: 50 milliohms
Mounting Hole Size: Diameter 1.75 mm Full Stroke: 6.35 mm
Rated Stroke: 4.32 mm
Spring Force: 113/198/255/285 gf (4/7/9/10 oz) Materials
Receptacle: Brass, Gold Plated
Contact Barrel: Brass, Gold Plated
Spring: Music Wire, Gold Plated
Plunger: BeCu/SK4, Nickel Plated or Gold Plated Company Information
Centalic Technology Development Ltd. was founded in 1980 - Specializing in R&D, manufacture, sales and technical service, Centalic is one of the earliest high-tech enterprises which concentrates on large-scale production of various test probes and precision metal parts, and has a professional manufacturing base owning complete production lines and test equipment.
Our products include semiconductor test probes, in-circuit test probes, radio frequency probes, harness probes, battery contact probes, switching probes, big-current probes, spring probes, universal complex test probes, wafer probes, and so on.
They are widely applied to the tests of various electronic products, such as in-circuit tests of semiconductor components, chips, PCB and other electronic peripherals.
Our company owns professional R&D, production, sales teams under the working principle of 'quality, punctuality, confidentiality' to totally efficiently develop test probes in accordance with the requirements of customers' test projects and meet the needs of customers for mass production as well as developing markets.
With many years' continuous endeavour of our staff, Centalic has built a solid foundation in this industry and our products have been sold all over the world.
Welcome to browse our website and download any catalogs of our products.
If you need a complete set of product manual, please feel free to contact us.
Many products are not uploaded due to a huge range.
If you can't find what you need, please feel free to contact us.
Notice:
Stock: standard product.
As usual, they are in stock.
Express: DHL, FedEx, UPS, etc.
Payment: T/T, PayPal
Company Contact:
- Posted By: Centalic Technology Development Ltd.
- Phone: +85252857123
- Address: Room B, 4/F, Good Luck Industrial Building, 105 How Ming Street, Kwun Tong, Kowloon , Hong Kong
- Email:
- Website: https://centalic.com
Published date: December 1, 2022
- Business Description: We are test probe/pin manufacturer and having more than 30 years production experience.
Our products are applied to IC and In-circuit testing fields.
Further, we also provide the tailor made service not only test pins but also small metal parts.
Centalic Technology Development Ltd. was established in 1980 as a manufacturer to provide PCB hold-drilling service to customers.
Foreseeing the rapid development of PCB industry, Centalic also developed her technology and transformed to be a manufacturer of PCB bare-board testers in 1985 - 30 years experiences in PCB testing industries, we have built up a solid background and technology on manufacturing Test System, Test Probes, Test Fixture and Fixture accessories for PCB and electronic assembly industries.
In 1992, Centalic has expanded her production capabilities by moving to the new factory in China.
As our business keeps growing, we have set up another factory in China in 1999 and sales offices in Shanghai and with the head office in Hong Kong.
In 2006, the Suzhou office was set up to expand the sales network in Northern China.
