Stainless Steel Micro Limit Switch 100 M Min Insulation Resistance - China

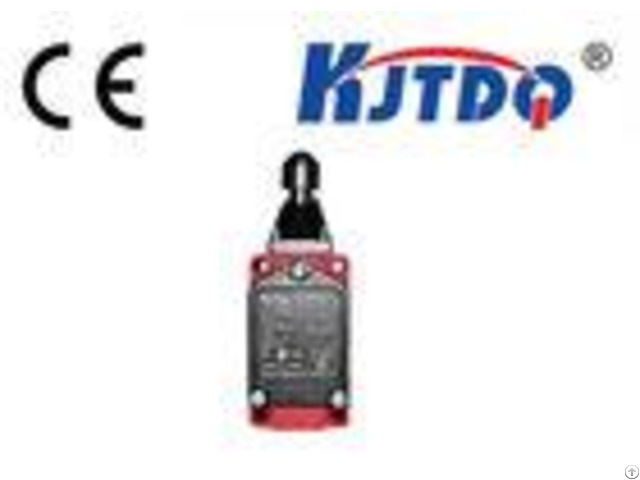

KJT-XW6K Series High Temperature Limit Switch Quick details: Name: High temperature limit switch Model: KJT-XW6K Operating temp: -25~350 Specification: - - - - Rated Voltage(V) | Noninductive Load (A) | Inductive Load (A) | | Resistance Load | Lamp Load | Inductive Load | Motor Load | | NC | NO | NC | NO | NC | NO | NC | NO | 125 V AC | 10 | 3 | 1.5 | 10 | 5 | 2 | 250 V AC | 5 | 2 | 1 | 5 | 3 | 1.0 | 480 V AC | 3 | 1.5 | 0.8 | 3 | 1.5 | 0.8 | 600 V AC | 1 | 1 | 0.5 | 1.5 | 1 | 0.5 | 8 V DC | 10 | 6 | 3 | 10 | 6 | 14 V DC | 10 | 6 | 3 | 10 | 6 | 30 V DC | 6 | 4 | 3 | 6 | 4 | 125 V DC | 0.8 | 0.2 | 0.2 | 0.8 | 0.2 | 205 V DC | 0.4 | 0.1 | 0.1 | 0.4 | 0.1 | - - - - - - - - Model No.

| KJT-XW6K | Name | High Temperature Limit Sensor | Rated current | 10 A 250 VAC | Operation speed | 1 mm--2 m/sec | Operating frequency | Mechanical: 120 operations/minute Electrical: 30 operations/minute | Contact resistance | 15 m max.

(initial value) | Insulation resistance | 100 m min.

(at 500VDC) | Dielectric strength | 1000VAC, 50/60HZ for 1 minute between terminals of the same polarity | 2200VAC, 50/60 HZ for 1 minute between currentcarrying and non-current carrying metal parts | 2200VAC, 50/60 HZ for 1 minute between each terminal and ground | Vibration | 10-55 HZ, 1.5 mm double amplitude | Shock | Mechanical durable: 1000m/Sec2(about 100G'S); Malfunction(Misoperation) : 300m/Sec2(about 30G'S) | Operating temperature | -60C ~ +350C | Operating humidity | Max.

95% RH | Life | Mechanical: 15, 000, 000 above Electrical: 500, 000 above | Protection degree | IP 67 | Weight | 258 g | Logo | Customized logo with Decal / Frosted / Print are available as request | Payment term | 30% deposit in advance, 70% before shipment, 100% T/T in advance | Certificate | CCC, CE, ISO9001 | Design ability | We can supply sample, OEM & ODM is welcome (Design, Engineering, Photographing, Sample, Production) | - - - - Application: High temperature limit switch is widely used in steel mills, and the temperature can up to 350 - Competitive Advantage: 1) Double circuit type of limit switch 2) Temperature up to 350 C, products are divided into high temperature 200 C and 350 C two specifications FAQ: Q: What's your warranty ? How about the quality of your sensors ? A: 18 mouths .

We have the certification of ISO, CE, CCC.

Our sensors can replace many famous brand sensors(BALLUFF, IFM, P+F, TURCK, OMRON, SICK, Contrinex, Schneider, KEYENCE, BANNER, BAUMER, AUTONICS, etc) You can provide us the date sheet and we check whether can produce.

Q: Can we have our logo or company name to be printed on your products or the package ? A: Yes, you can.

Logo or imprints can be printed on our products.

The minimum quantity is 500 pcs per logo.

You can send us the artwork by email in JPEG or TIFF format.

If you want your logo and company name to be printed on the package for the products(custom design package).

Such as gift box and paper card, the MOQ is 500 pcs per model.

You can send us the artwork by email in JPG/TIF/AI/EPS/TIFF or coreIDraw formats
