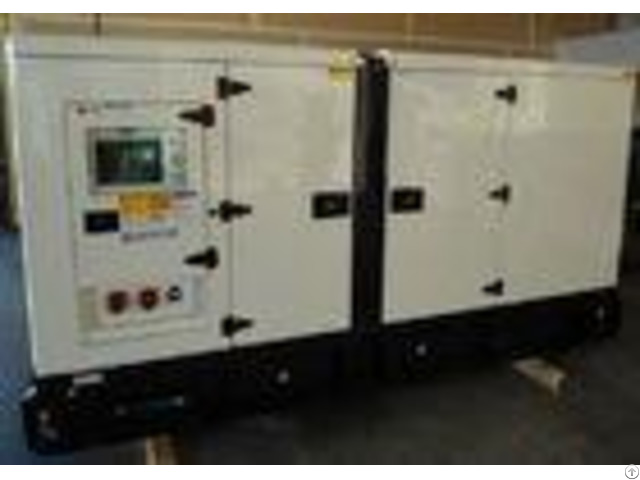

Standby Power Perkins Diesel Generator Set 110kva 88kw With Ce Iso Certification - China

50 HZ 220V / 440V Standby Power 110kva / 88KW Perkins Store Silent Diesel Generator With CE / ISO Output Ratings - - - - Gensets Model | Prime Power | Standby Power | kW | kVA | kW | kVA | TP100PA6S | 80 | 100 | 88 | 110 | - - - - - - - - Voltage | 440V-480V | 254V-277V | 208V-240V | Amps | 108-118 | 188-205 | 217-250 | - - - - Ratings at 0.8 power factor 1) Ambient reference conditions: 1, 000 mbar, 27, 30% relative humidity; 2) ESP: Standby Power Standby duty, operation under variable load, without over load; 3) PRP: Prime Power-Continuous duty operation, under variable load 24/24h-10% over load permissible 1 hour/12 hours; Ratings and Performance Data - - - - Engine Brand | Perkins | Engine Model | 1104C-44TAG2 | Alternator Brand | Stamford | Alternator Model | UCI274C | Control System | DSE6020 / DSE7320 | Standard Noise Level@7m (Soundproof Sets) | 70 db | Circuit Breaker Type | 3 Pole MCCB | Frequency & Phase | 50Hz & 3PH | Engine Speed: RPM | 1800 | Fuel Tank Capacity: L | Open | 237 | Soundproof | Fuel Consumption (l/hr) | 110% Load | 25.5 | 100% Load | 23.7 | 75% Load | 18.7 | 50% Load | 13.5 | Lubricant | 15W40 | Total Lubricant Capacity (L) | 8 | - - - - Features # Standard open type is good to working in engine room with ventilation system.

# The super silent model ( up to 50kw ) has electronic cooling fan and special design low noise level canopy.

which is specialized for low noise level environment, such as office building, villa, museum.

# Standard soundproof type ( IP21 ) will be working perfectly in the open air # All standard type can be working in 3rd explosive area for mining industry, special design will be suitable for 2nd explosive area.

# All functional components are modular design, for fast repair, replace, and reduce stock, which can satisfy rental business.

# 50 radiator # IP54 ( soundproof sets ), IP56 ( control system ) # Base fuel tank for at least 8 hours running # For friendly experience, all I/O control interface and daily maintenance parts are combined in one side.

Optional - - - - Engine | Alternator | Generator | Fuel System | Canopy | Water Jacket Preheater Oil Preheater | # Winding Temperature # Measuring Instrument # Alternator Preheater # PMG # Anti-damp and anti-corrosion treatment # Anti-condensation heater | Toolkit with the machine | # Low fuel level alarm # Automatic fuel feeding system # Fuel T-valves | # Trailer # Galvanized | Lubricating System | Exhaust System | Cooling System | Control System | Voltages | Oil with the machine | Protection board from hotness | Front heat protection Coolant ( - 30 C ) | # Remote control panel # ATS | # 415 / 240 V # 400 / 230 V # 380 / 220 V | - - - - Package & Payment & Delivery Date & Warranty Package: Plastic Package.

Payment: by 30 % T / T as deposit, 70% balance should be paid 10 days before shipment.

Or 100 % L / C at sight.

Delivery: 25 days after we get the down payment.

Warranty: All Topower goods are warranted in accordance with our warranty terms for a period of 12 months from date of despatch or 1000 running hours from date of commissioning whichever date occurs the sooner.

The Details of Perkins Diesel Generator - - - - GENSET MODEL | OUTPUT(kW) | OUTPUT(kVA) | ENGINE | ALTERNATOR | STANDBY | PRIME | STANDBY | PRIME | PERKINS MODEL | STAMFORD | LERY SOMER | WATTEK | SP9M5 | 8 | 7 | 10 | 9 | 403D-11G1 | PI044E | LSA 40 VS1 | WHI 164B | SP13M5 | 11 | 10 | 14 | 13 | 403D-15G1 | PI044F | TAL-A40-C | WHI 164C | SP15E5 | 13 | 12 | 17 | 15 | 403D-15G2 | PI044G | TAL-A40-D | WHI 164D | SP20M5 | 18 | 16 | 22 | 20 | 404D-22G1 | PI144D | TAL-A40-F | WHI 184ES | SP9M5 | 8.0 | 7.0 | 10 | 9 | 403D-11G | PI044E | LSA 40 VS1 | WHI 164B | SP13M5 | 11.0 | 10.0 | 14 | 13 | 403D-15G | PI044F | TAL-A40-C | WHI 164C | SP20M5 | 18.0 | 16.0 | 22 | 20 | 404D-22G | PI144D | TAL-A40-F | WHI 184ES | SP63M5 | 55 | 50 | 69 | 63 | 1104A-44TG1 | UCI224E | TAL-A42-H | WHI 224E | SP80M5 | 70 | 64 | 88 | 80 | 1104A-44TG2 | UCI224G | TAL-A44-C | WHI 224G | SP80E5 | 70 | 64 | 88 | 80 | 1104C-44TAG1 | UCI224G | TAL-A44-C | WHI 224G | SP100E5 | 88 | 80 | 110 | 100 | 1104C-44TAG2 | UCI274C | TAL-A44-D | WHI 274C | SP135M5 | 119 | 108 | 149 | 135 | 1106A-70TG1 | UCI274E | TAL-A44-H | WHI 274E | SP150M5 | 132 | 120 | 165 | 150 | 1106A-70TAG2 | UCI274F | TAL-A44-J | WHI 274F | SP180M5 | 158 | 144 | 200 | 180 | 1106A-70TAG3 | UCI274G | TAL-A46-A | WHI 274G | SP200E5 | 176 | 160 | 220 | 200 | 1106A-70TAG4 | UCI274H | TAL-A46-B | WHI 274H | - - - -
