Stationary Multi Positions Three Phase Energy Meter Test Bench Gf3000 Gfuve - China
price: 128655.00 Dollar US$

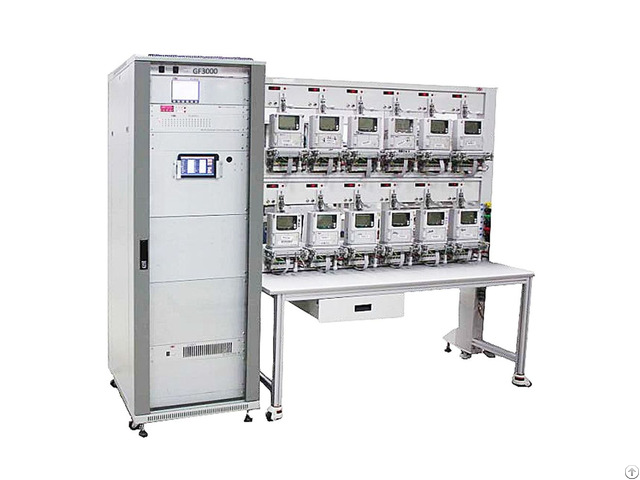

The GF3000 series stationary three phase energy meter test bench is a fully automatic system that enables simultaneous, multi-position calibration and verification of three-phase electric energy meters error.
Full compatibility with IEC 60736, excellent parameters, superior functionality and outstanding flexibility, It adopt the most advanced electronic measurement technique and modular concept combine the difference three phase reference standards and power amplifier.
GF3000 three phase meter test equipment is applied in the measurement centre of grid company energy measurement department of power supply company and energy management utility, industrial enterprise and meter manufacturers.
Specification
Warranty: 3 years
Power: Electronic
Customized support: OEM, ODM, OBM, Software reengineering
Place of Origin: Beijing, China
Brand Name: GFuve
Model Number: GF3000
Accuracy: 0.02%, 0.05%, 0.1%
Power supply: AC 180-265V, or 3x220/380V±15%, frequency 50/60Hz.
Measuring voltage range: 57.7V, 100V, 220V, 380V (max 480V)
Voltage Output load: 1500VA
Measuring Current range: 0.1A, 0.25A, 0.5A, 1A, 2.5A, 5A, 10A, 25A, 50A, 100A, 120A
Current Output load: 1500VA
Power factor measurement range: -1 ~ 0 ~ 1
Power factor measurement accuracy: 0.0005
Dimension: Cabinet size: 800 * 600 * 1850mm; Bench size: 2*2400 * 760 * 1846mm
Declaration of conformity: CE & CNAS certified
Company Contact:
- Posted By: BEIJING GFUVE ELECTRONICS CO LTD
- Phone: 18901232181
- Address: Oriental HuaRui A No. 150 Guanzhuang Road Chaoyang District Beijing, 100024, China, BEIJING , China
- Email:
Published date: January 31, 2024
- Business Description: Beijing GFUVE Electronics Co., Ltd. was established in 2005 - It combined science, industry and trade together as one high-tech enterprise.
