Steel Frame Oilfield Shaker Screen Panel For Brandt Vsm300 Primary - China

Oilfield Shaker Screen Panel Brandt VSM300 Primary Steel Frame Shaker Screen 1: Description Oilfield Shaker Screen Panel Brandt VSM300 Primary Steel Frame Shaker Screen are mostly applied to the shale shakers with wedge fastening equipment.

The screen frames adopt that high-strength square steel tube welded to multi-ribbed construction.

They are sturdy and reliable.

These screens are constructed with two or three stainless steel layers bonded to a steel support plank.

Accessary rubber plugs may be used to repair rips or tears.

By doing this, we can cut down time and reduce the production costs.

We can supply steel frame screens with mesh sizes ranging from 20 to 325 mesh.

2: Specifications - - - - Product name | Oil drilling fluids Brandt Shaker Screens VSM300 Series for mud cleaner | Wire mesh material | SS304 SS316 or customized as customers demands | Size | 940 X 676 mm | Weight | 11 kgs | Screen layers | 2 or 3 layers | Mesh count | 20-325mesh | Quality standard | Compliant with API RP13C Standard | - - - - 3: Features of Steel frame screen 1) Different layers with different density.

To arrange these layers reasonably and exactly, the screening effect will become more and better.

2) High strength frame, multi-ribs and the mesh cloth with moderate tension, from one reliable combination, which can increase screens acceptable flow, the intensity and the lifetime 3) The wedge-shaped fastening device, can make the erection of screens more handily and quickly 4) The mesh divided into many independent small units by grids of the backing plate, can prevent rips or tears from spreading overmuch.

Accessory prepared rubber stoppers 4: Application Shale shaker screen widely used in petroleum drilling machine, solids control equipment, desander, desilter and so on.

Especially, it is the important fitting of drilling slurry purified equipment.

For acid, alkali conditions screening and filtering.

Used as Mud network for the oil industry, chemical fiber industry for filter screen, electroplate industry to make pickling network, etc.

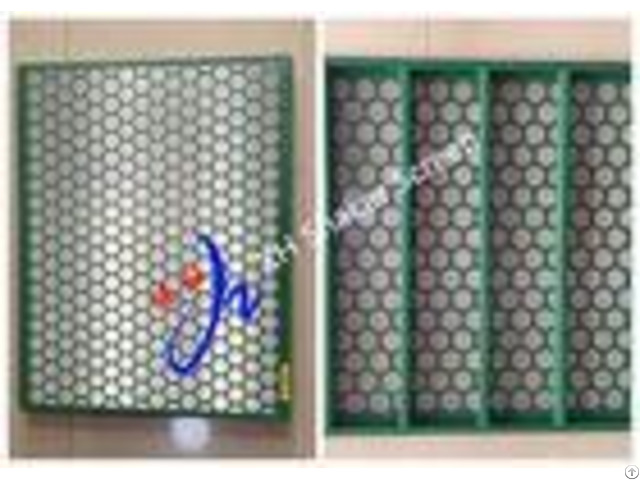

5: Pictures
