Super Slim P6 Full Color Led Module High Refresh Rate For Commercial Advertising - China
price: check with company for price

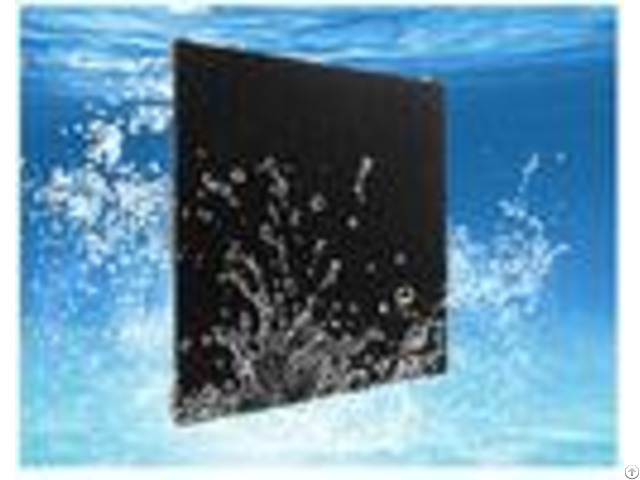

P6 Outdoor Full Color LED Module RGB192*192mm LED Screen / Panel / Waterproof led Module Product features : 1 .
High quality LED chip and high anti-static electricity capacity.
2 .
Large viewing angle and smooth displaying provide excellent visual effect from every angle.
3 .
The integration of lamp and driving IC, together with with the multi-circuit structure, achievs evenly-distributed current, low power consumption and fast heat dissipation.
4 - Ultra high brightness, low attenuation, high reliability and weather ability.
5 .
High contrast ratio.
Adopting black lamps can improve the contrast ratio by 50%.
6 .
High refresh rate, high gray scale, ghost-canceling, low power consumption, low EMI, anti-creeping, multi-route redundancy backup-supporting, and dot-by-dot-calibration.
Application scopes : Widely applied to traffic information distribution of station, quay and airport, conference, shopping mall, brand presentation, TV station, stage show, concert, stadium display screen etc .
Parameter - - - - Unit Module | Item | Parameter | | Model Number | SF-SS6-8-A | | Module size | 192mm*192mm | | Pixel pitch | 6mm | | Pixels Density | 27777Pixels /m2 | | Pixel configuration | 1R1G1B | | Package mode | SMD3535 | | Pixel resolution | 32dots(W)*32dots(H) | | Max Power | 25W | | Module thickness | 17.5mm | | Module Weight | 0.38kg | | Drive type | Constant drive | | Scan mode | 1/8 | | Port type | HUB75-B | | Brightness of white balance | 60006500cd/m2 | | | LED Cabinet | Dimension | 960mm*960mm*100 mm | | Monomer Module Number | 25pcs | | Power supply | 5V/40A*5pcs | | Thermal discharge | fan 2pcs | | Pixel per cabinet | 96mm*96mm | | Best viewing distance | 6M30M | | Best viewing angle | 120(W)110(H) | | Temperature | storage: -35+85 working: -20+50 | | Relative humidity | 10%-95% | | Thickness | 117.5mm | Power | Working voltage | AC220V10% | | Average Power consumption | 400W/ | | Max.
Power consumption | 1200W/ | | Current | 20mA(single LED) | Control system | CPU | Pentium4 or above P4 | | Operation system | WIN98/2000/NT/XP/WIN7 | | Control method | Synchronization | Main technical parameter | Driving device | Constant drive IC | | Refresh frequency | 1200HZ | | Grey scale/colors | 4096, 16.7MColor 4096gray level/16.7M colors | | MTBF | 9000hours | | Power switch | Automatic switch | | Display Mode | 800*600/1024*768 | - - - - Product Show
