Suspension Meter Supplier - China

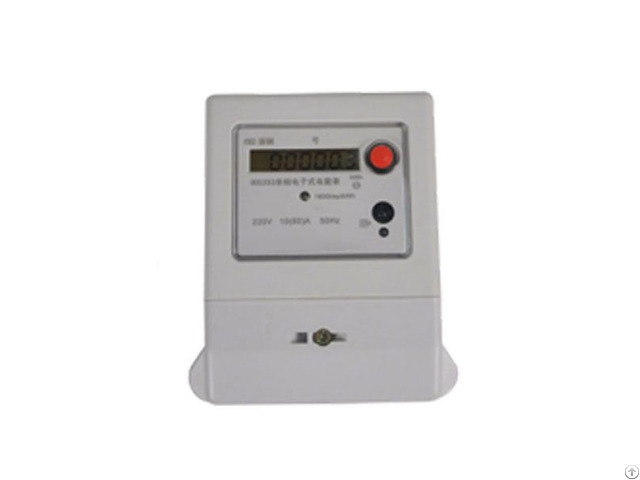

Suspension Meter

1 - Brief Introduction D129022 is a single phase two wires suspension type energy meter with 60A latching relay, LCD display, FIR & RS485 communication (protocol DLT645: 2007), monthly and daily electricity consumption storage.

2 - Technical Parameter of Multi-Rate Energy Meter

Ref.

voltage 220V

Ref.

current 10(60)A

Impulse constant 1600imp/kWh

LCD display LCD5+1

Temp.

range -40~+70℃

Annual average humidity 75%

Max humidity 95%

Ref.

frequency 50Hz

Accuracy class Cl.

0.5 (Active)

Starting current 0.2%/Ib( Cl.

0.5)

Suspension Meter wholesale Power consumption ≤ 1.5W, <10VA

Standard compliant IEC62053-21, IEC62052-11, IEC62053-23 3 - Function Description of 1P Suspension Meter

3.1 Metering Function

Active energy measurement

3.2 Communication Function

Support RS485 Communication, DLT 645: 2007 protocol with baud rate 2400.

Support FIR communication, the interface is used for reading and setting local parameters.

3.3 Display Function

Plz refer to LCD display part

3.4 Button Function LCD scrolling pages through the button

3.5 Others Built-in 60A latching relay
