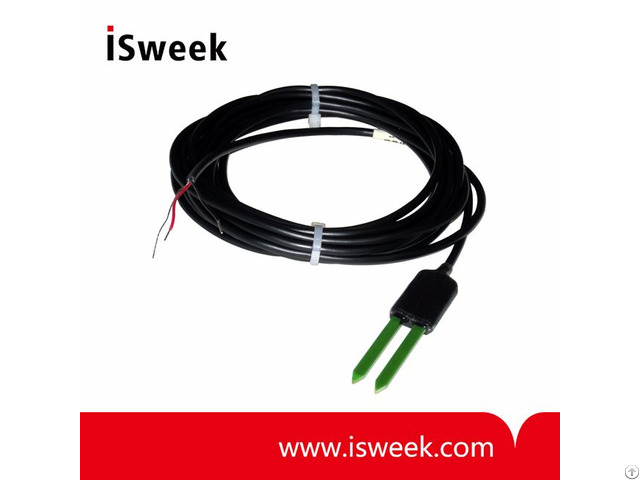

Sut Soil Moisture Sensor - China

price: check with company for price

SUT Soil Moisture Sensor DESCRIPTION

The soil moisture sensor is a device that detects the dielectric constant of the soil by measures in high frequency (70Mhz).

This value depend on the soil moisture and is insensitive to water salinity.

Water in soil is a conductor and on the basis of its concentration is possible to obtain an indication of the humidity of the soil.

The sensor is automatically temperature compensated and has a standard output 4-20 mA, or normalized 0 - 2Vdc or digital RS485/Modbus using MCS modules.

The sensor can be easily interfaced with any acquisition system which allows to calculate the value of VWC implementing equations by approximation.

/

SUT Soil Moisture Sensor Highlighted specs

• High precision soil moisture sensor no conductivity based

• Measures volumetric water content (VWC)

• Insensitive to salinity and no corrode over time

• Easy to install and with low weight

• According to WMO standards

• Supplied with calibration report

• Maintenance and re-calibration not required

• According to CE norms

/

SUT Soil Moisture Sensor Technical Data

• Measuring range: 0 ~ 100% VWC (volumetric water content)

• Accuracy: ± 6% VWC, greater accuracy on specific request for calibration

• Time constant: 1 sec (medium time)

• Working temperature: -40 ~ 60°C

• Power Consumption: 10 ~ 30 Vdc; 5mA@12Vdc (typical)


Company Contact:


  • Phone: 86-0755-83289036

  • Address: 16 Floor, Building #3, Zhongke Mansion, Gaoxin South 1st Rd, Hi-Tech Park, Nanshan, Shenzhen , Guangdong , China

  • Email: Email
