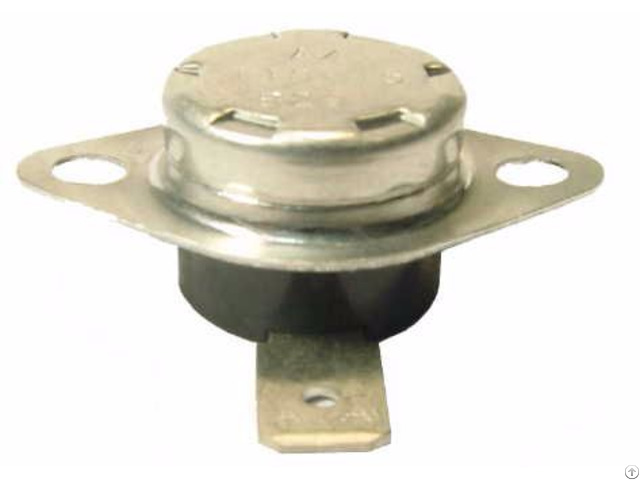

T24 4a Bf2 Home Appliance Bimetal Thermostat - Taiwan
price: contact company for price
(1) CONTACT TYPE : Contact Opens When Temperature Rises To Set Point (Normally Closed)
(2) FIXED BRACKET : B Cap
(3) TERMINAL ORIENTATION : Horizontal
(4) TERMINAL SIZE: Amp#250 TAB ( 6.35mm x 0.8t mm )
Reset Type Automatic or Manual
Contact Type on Rise NC
16A/250VAC
Electrical Rating 15A/125VAC
10A/250VAC
Calibration Method 1°C/min, Air circulation furnace
Operating Temp.
* 40°C~ 200°C (ENEC)
40°C~ 205°C (UL/CUL)
Temp.
Tolerance ±3K/ ±5K
Heat Durability 180°C * 2Hr Max.
Action Temperature 70±3°C
Reset Temperature 58±4°C
Circuit Resistance 50 MΩ Max.
Insulation Resistance 100MΩ at DC 500V
Dielectric Strength AC 1000V/min or AC 1800/sec (Leak Current 0.5mA)
Operating Life 100, 000 Cycles (15A/125VAC, 10A/ 250VAC)
10, 000 Cycles (16A/250VAC)
The product is highly customizable in terms of bracket choices, terminals, and housings.
Please feel free to contact us for a complete product offer.
Company Contact:
- Posted By: Honest-Well Co., Ltd.
- Phone: +886-2-22190080
- Address: 4F., No.4,, Ln. 560, Zhongzheng Rd,, Xindain Dist., New Taipei City, New Taipei City, Taiwan , Taiwan
- Email:
- Website: https://www.honest-well.com.tw
Published date: August 19, 2016
- Business Description: We are privileged to introduce our top Thermostats, Thermal Cutoff and Solutions in Great China to you.
Honest-Well Co., Ltd., located in Taipei, Taiwan, was first established in 1997.
Taipei office continues to provide marketing services to our customers all over the world.
The products are delivered from Taipei office; we will provide twice random inspections for customers, so we can secure high quality and reliable goods.
The product category started with Thermostat and gradually expanded its product line to various types of Switches and other Thermal Components such as NTC Sensor and Thermal Protector, etc.
Trying to meet international standard quality, most of our products acquired UL, CSA, VDE, ENEC certificates and factory also acquired ISO9001: 2000 approval.
Our products are selling to worldwide, from initial 10% overseas share and increase to 70% more now.
Our market is expanding from Taiwan, China, Asia, America, Europe, and Middle East.
Our goods is applied in many kinds of home appliances ot instruments; for example, Water Dispenser, Water Heater, Hair Dryer, and Freezer, etc.
Your join and participation would be our great honor, as we become more beyond a supplier but a partner in your business.
“Quality Priority, Cost Effective, Service First & Honest” becomes our motto.
