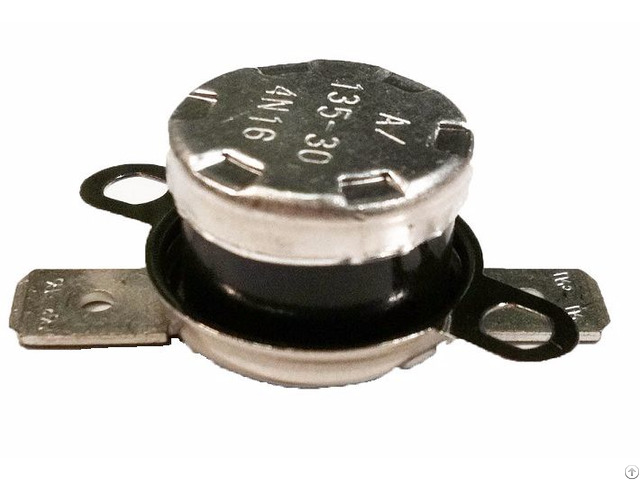

T24 4a Sf2 Loose Bracket Bimetal Thermostat For Home Appliance - Taiwan

(1) CONTACT TYPE : Contact Opens When Temperature Rises To Set Point (Normally Closed)

(2) LOOSE BRACKET – S Type

(3) TERMINAL ORIENTATION : Horizontal

(4) TERMINAL SIZE: Amp#250 TAB ( 6.35mm x 0.8t mm )

Reset Type Automatic or Manual

Contact Type on Rise NC

16A/250VAC

Electrical Rating 15A/125VAC

10A/250VAC

Calibration Method 1°C/min, Air circulation furnace

Operating Temp.

* 40°C~ 200°C (ENEC)

40°C~ 205°C (UL/CUL)

Differential 10K ~ 65K

Temp.

Tolerance ±3K/ ±5K

Heat Durability 180°C * 2Hr Max.

Circuit Resistance 50 MΩ Max.

Insulation Resistance 100MΩ at DC 500V

Dielectric Strength AC 1000V/min or AC 1800/sec (Leak Current 0.5mA)

Operating Life 100, 000 Cycles (15A/125VAC, 10A/ 250VAC)

10, 000 Cycles (16A/250VAC)

The product is highly customizable in terms of bracket chocies, terminals, and housings.

Please feel free to contact us for a complete product offer.
