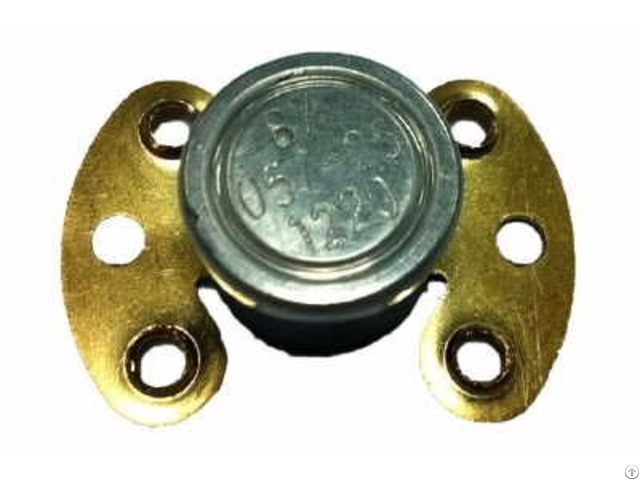

T24 4b Cft Tg Fire Alarm System Bimetallic Nc Snap Action Thermostat - Taiwan
price: 0.80 Dollar US$
Application:
Very suitable for fire alarm system
* CONTACT TYPE : Normally Closed
* ACTION TEMP : 57 °C ± 3 ℃
* RESET TEMP : 37 °C ± 4 ℃
* TERMINAL SIZE : Amp #1004 TAB
* CIRCUIT RESISTANCE : 50m MAX.
* INSULATION RESISTANCE : 100M min.
at DC 500V
* DIELECTRIC STRENGTH : AC 1500V For One Minute
Or AC 1800V For One Sec
*APPROVALS AND OPERATING LIFE :
UL CUL: 100, 000 Cycles : 15A 125VAC/10A 250VAC
ENEC17: 100, 000 Cycles : 15A 125VAC/10A 250VAC
10, 000 Cycles : 16A 250VAC
CQC: 10, 000 Cycles : 16A 250VAC
Company Contact:
- Posted By: Honest-Well Co., Ltd.
- Phone: +886-2-22190080
- Address: 4F., No.4,, Ln. 560, Zhongzheng Rd,, Xindain Dist., New Taipei City, New Taipei City, Taiwan , Taiwan
- Email:
- Website: https://www.honest-well.com.tw
Published date: August 19, 2016
- Business Description: We are privileged to introduce our top Thermostats, Thermal Cutoff and Solutions in Great China to you.
Honest-Well Co., Ltd., located in Taipei, Taiwan, was first established in 1997.
Taipei office continues to provide marketing services to our customers all over the world.
The products are delivered from Taipei office; we will provide twice random inspections for customers, so we can secure high quality and reliable goods.
The product category started with Thermostat and gradually expanded its product line to various types of Switches and other Thermal Components such as NTC Sensor and Thermal Protector, etc.
Trying to meet international standard quality, most of our products acquired UL, CSA, VDE, ENEC certificates and factory also acquired ISO9001: 2000 approval.
Our products are selling to worldwide, from initial 10% overseas share and increase to 70% more now.
Our market is expanding from Taiwan, China, Asia, America, Europe, and Middle East.
Our goods is applied in many kinds of home appliances ot instruments; for example, Water Dispenser, Water Heater, Hair Dryer, and Freezer, etc.
Your join and participation would be our great honor, as we become more beyond a supplier but a partner in your business.
“Quality Priority, Cost Effective, Service First & Honest” becomes our motto.
