Tcs3000 3020 Series Toroidal Conductivity Sensor - China

price: check with company for price

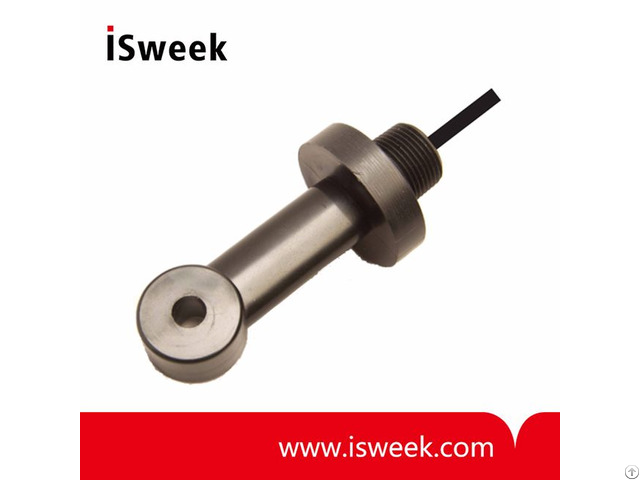

Tcs3000 3020 Series Toroidal Conductivity Sensor

Products Photos Catalog Tcs3000 3020 Toroidal Photos Catalog

TCS3000 and 3020 Series Toroidal Conductivity Sensors

/

Item No: TCS3000, TCS3020, FC95C

/

TCS3000/3020 Series Toroidal Conductivity Sensors Features

• Resists coating, corrosion and fouling

• Durable Noryl construction

• Easy installation

• Custom tee for in-line mounting

• Connects to Sensorex TCSMA, TCSTX, Rosemount or Foxboro Instrumentation

/

TCS3000/3020 Series Toroidal Conductivity Sensors Description

The Sensorex TCS series toroidal inductive conductivity sensors features a wide measurement range and dependable toroidal technology over the range 0-2000 - Resistant to corrosion, coatings and fouling common to contacting conductivity sensors, the TCS series is designed for a trouble free and long service life.

/

Noryl is the standard material of construction and has a wide solvent tolerance and temperature stability to 105 degrees C***.

optional PeeK models will be available in the future.

all models can be submersed by utilizing the 3/4” MnPT threads on the sensor or installed in 2” nPT tees for in-line deployment.

aTC element is user specified and built into the TCS sensor.

all TCS sensor models are suppplied with 20ft long 9-conductor cable.

Custom lengths are available.

Please contact Sensorex for pricing.

/

Choose the TCS3020 for use with a Sensorex TCSMa or TCSTX toroidal transmitter.

TCS3000 sensors can be connected to many toroidal controllers and transmitter manufactured by rosemount, Foxboro or others.

/

TCS3000/3020 Series Toroidal Conductivity Sensors Specifications

• Measuring Range: TCS3020 and TCS3000 - 0-2, 000, 000 uS/cm

• Body Material: Noryl (Optional PEEK will be available in the future)

• Max Temperature: 105 Degrees C***

• Max Pressure: 150 psig

• Temp Comp: User specified temperature elements or -P1k for TCSMA and TCSTX transmittters.

• Cable Length: 20 feet, 6 conductor plus shields

• Process Connection: 3/4" MNPT for submersion, 2" standard tee with A1001/A1002 adapter

***Note: 105 degrees C spec is for sensor only.

If used with FC95C flow cell, maximum temperature is 80 degrees C.
