Tcsma Loop Powered Isolated Toroidal Conductivity Transmitter - China

price: check with company for price

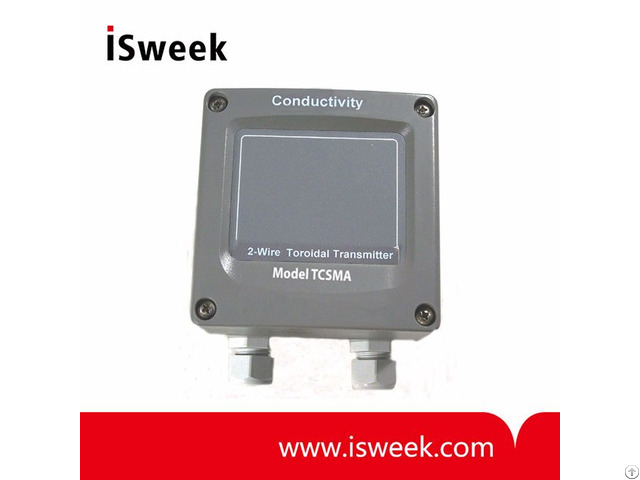

Tcsma Loop Powered Isolated Toroidal Conductivity Transmitter

Products Photos Catalog Tcsma Loop Powered Photos Catalog

TCSMA - Loop-Powered, Isolated Toroidal Conductivity Transmitter

/

TCSMA Toroidal Conductivity Transmitter Features

• 4-20mA isolated output, loop-powered (16-35V DC)

• User-adjustable temperature compensation (0-4%/ deg C)

• Selectable measuring ranges

• Adjustable zero and span

• Direct/reverse operation

• Nema 4X enclosure with multiple mounting configurations

/

TCSMA Toroidal Conductivity Transmitter Description

The TCSMA model is designed for on-line monitoring of water treatment applications and aggressive process chemicals.

This blind transmitter is ideally suited for applications where 4-20mA signals are required and reliable instrumentation is critical.

/

Key features include: selectable measuring ranges, adjustable temperature compensation (%/deg C), isolated output and reversible cell drive.

/

A Nema 4X (IP66) enclosure provides durability.

A variety of mounting choices are available for Wall, Pipe or DIN Rail installation.

/

Pair the TCSMA with a TCS3020 toroidal sensor for trouble-free service.

TCS3000 and TCS3020 sensors are offered in Noryl construction and can be mounted in a custom flow cell (FC95C) for in-line use.

/

TCSMA Toroidal Conductivity Transmitter Specifications-Transmitte s

• Measuring Range: 0-100, 000 uS

• Sensitivity: 0.1% of span

• Repeatability : 0.2% of span

• Power Requirement: 16-35 VDC (2-wire device)

• Response Time: 5 seconds to 90% full scale

• Operating Temperature: -20 to 60 deg C

• Operating Humidity: 0-95% R.H. non-condensing
