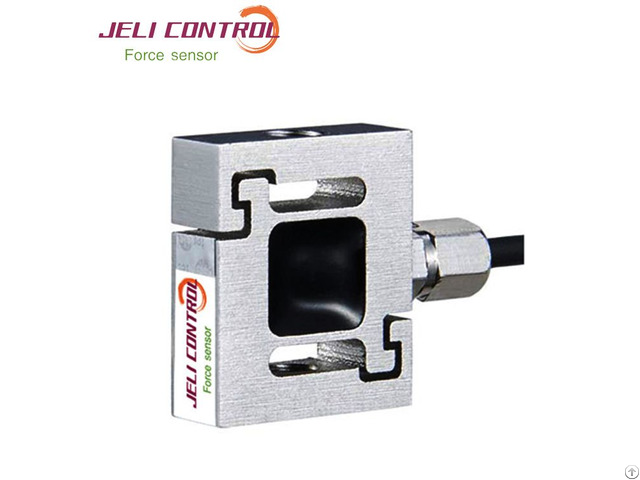

Tension And Compression Load Cell 5n 2000n J2092 - China

Features & Applications:

miniature sensor, low altitude Tension&Compression load cell, equipped with adjustable resistance Stainless steel IP66 with overload protection Mainly used for push and pull meter, plug and pull force tester, nail machine, welding machine, film machine and so on

Product Specification:

Model No J2092

Rated Output 2.0±10%mV/V

Zero Balance ±2%F.

S

Non-Linearity 0.1%F.

S

Hysteresis 0.1%F.

S

Repeatability 0.1%F.

S

Temp.

Effect On Output 0.1%F.

S/10℃

Temp.

Effect On Zero 0.05%F.

S/10℃

Input Impedance 380±30Ω

Output Impedance 380±30Ω

Insulation ≥5000MΩ/100VDC

Recomme nded Excitation 5V

Maximum Excitation 10V

Compensated Temp.

Range -10~60℃

Operating Temperature -20~80℃

Safe Overload 150%F.

S

Ultimate Overload 300%F.

S

Cable Size 3000mm

IP Rating IP66

Company Contact:

• Posted By: Shenzhen JeLi control Technology Co., LTD

• Phone: 17376759830

• Address: Factory No.2 baolong Industrial Zone, Bixin Road, Longgang Street, Longgang District,, shenzhen , guangdong , China

• Email:

• Website: http://www.jlkgroup.cn

• Business Description: Located in China, Shenzhen JeLi control Technology Co., LTD has provided load cells, force sensors and measuring solutions to more than 30 countries all over the world.

  At JeLi, you can find universal products like:

  Compression load cells

  - Tension compression force sensors

  - Single point load cells

  - Load buttons

  - Reaction torque sensors

  JeLi is also an expert in customized force transducers like:

  - Load pins for overload protection

  - Bolt sensor for fastening force monitoring

  - And other tailor-made force sensors for auto industry, robotics, medical equipment, etc.

  With experienced engineers in load cell and force sensor application area, JeLi knows exactly what you need after you talk to us.

  Being expert in strain gauge based load cell manufacturing technology and custom-made service, we are confident in providing the most suitable products to meet your applications perfectly.

  Quality, we not only know its importance, but also act in the same way.

  Lifelong technical support starts the moment you contact us.
