Tension Clamp - China
price: 1.00 Dollar US$
ADSS with The DN Short-span Tension Clamp
ADSS (All-Dielectric Self-Supporting) tension clamp is a device used to attach and support ADSS cables to poles or towers in overhead fiber optic cable installations.
It is designed to grip the cable without damaging it while also providing the necessary tension to keep the cable taut and secure.
Tension Clamp
ADSS (All-Dielectric Self-Supporting) tension clamp is a device used to attach and support ADSS cables to poles or towers in overhead fiber optic cable installations.
It is designed to grip the cable without damaging it while also providing the necessary tension to keep the cable taut and secure.
The ADSS tension clamp is typically made of corrosion-resistant materials such as aluminum or plastic and is available in different sizes to fit various cable diameters.

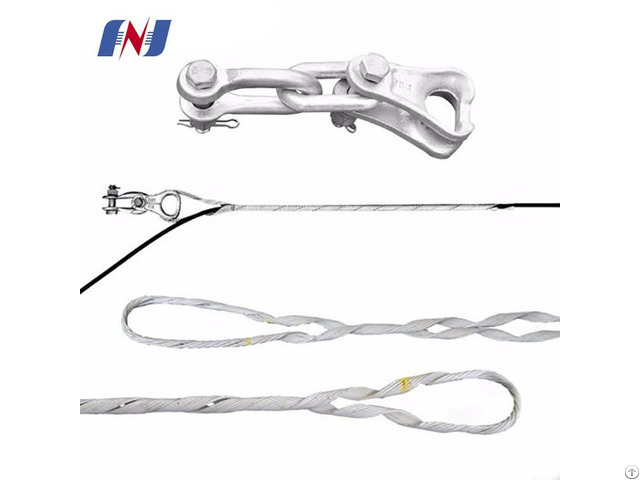

Composition: twisted wire, thimble, PH-type shackle, U-type shackle etc.
Purposes: support all strain, make ADSS cable connect the strain pole and tower.
Features:
Preformed wire connect the pole and tower by thimbles etc.
link fitting, afford the load of the transmission line.
Grip strength not less than cable 95%RTS in case that not more than lateral pressure of the cable
E xcellent aluminum clad steel improve the mechanical and resist-corrosion function, extend life.
Corrosion-resistant materials such as aluminum or plastic to ensure durability and longevity.
Gripping mechanism that securely holds the cable without causing damage.
Tensioning mechanism that allows for adjustment of the cable tension.
Insulating material to protect the cable from electrical currents.
Suitable for use with a range of cable diameters.
Easy installation and maintenance.
Technical requirements: meet the DL / T 766-2003 ADSS with the preformed helical fittings technical requirements and test methods
Company Contact:
- Phone: 13630823632
- Address: No.189,Hengshan Street, Shijiazhuang High-tech Zone, Hebei Province, China., Shijiazhuang , Hebei , China
- Email:
Published date: November 3, 2023
- Business Description: Shijiazhuang Huaneng Electric Power Fitting Co.
Ltd. is a new company with abilities of R&D, manufacture and trade.
The company locates in No.
189, Hengshan Street, Shijiazhuang High-tech Development Zone, Hebei Province, China, covering the area 26,593 square meters.
Shijiazhuang Huaneng Electric Power Fitting Co.
Ltd. specially manufactures preformed helical fittings which are widely used in transmission line.
Currently our company owns the big ability to produce lots of varied preformed helical fitting in one year, among them OPGW and ADSS fittings for optical cables, together with fittings for conductor line and earth-wire line which is developed recently passed the tests in the national Electric Power Construction Research Institute and Shanghai Electric Cable Research Institute, and passed identification of the expert group of Hebei Economic and Trade committee.
Our company was named as a high-tech enterprise by Hebei Science and Technique Bureau.
