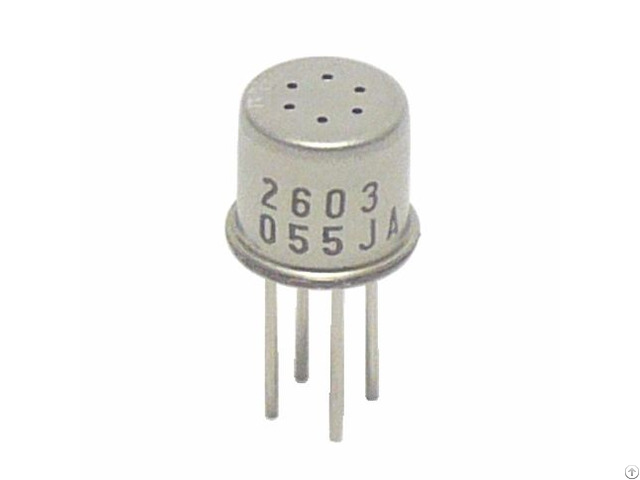

Tgs2603 Gas Sensor For Detection Of Odor And Air Contaminants - China
price: check with company for price
TGS2603 - for detection of Odor and Air Contaminants
/
Features
* Low power consumption
* High sensitivity to amine-series and sulfurous odor gases
* High sensitivity to food odors
* Long life and low cost
* Uses simple electrical circuit
/
Applications
* Air cleaners
* Ventilation control
* Deodorizer control
* Air quality monitors
/
The sensing element is comprised of a metal oxide semiconductor layer formed on an alumina substrate of a sensing chip together with an integrated heater.
In the presence of a detectable gas, the sensor's conductivity increases depending on the gas concentration in the air.
A simple electrical circuit can convert the change in conductivity to an output signal which corresponds to the gas concentration.
The TGS2603 has high sensitivity to low concentrations of odorous gases such as amine-series and sulfurous odors generated from waste materials or spoiled foods such as fish.
By utilizing the change ratio of sensor resistance from the resistance in clean air as the relative response, human perception of air contaminants can be simulated and practical air quality control can be achieved.
/
Specifications
Model number: TGS2603
Sensing principle: MOS type
Standard package: TO-5 metal can
Target gases: Air contaminants (Trimethylamine, methyl mercaptan, etc.
)
Typical detection range: 1 ~ 10ppm EtOH
Company Contact:
- Posted By: Shenzhen week Technology Ltd
- Phone: 86-0755-83289036
- Address: 16 Floor, Building #3, Zhongke Mansion, Gaoxin South 1st Rd, Hi-Tech Park, Nanshan, Shenzhen , Guangdong , China
- Email:
Published date: May 19, 2017
- Business Description: ISweek has been devoted to providing one-stop product distributing and purchasing solution and service for purchasers, suppliers, traders and manufactures from all over the world in industrial science and technology industry.
We are able to provide high-quality original products and thorough technical support and after-sale service to our member users.
