Tgs8100 Gas Sensor For The Detection Of Air Contaminants - China
price: check with company for price
TGS8100 - for the detection of Air Contaminants
/
Features
* Surface mount package
* Low power consumption
* High sensitivity to cigarette smoke, cooking odors, and gaseous air contaminants
* Long life
* Low cost Applications
* Indoor air quality monitors
* Air cleaners
* Ventialtion control
* Kitchen range hood control
/
The sensing element is comprised of a sensing chip and an integrated heater formed on a silicon substrate using MEMS technology, and a metal-oxide semiconductor layer formed on the sensing chip.

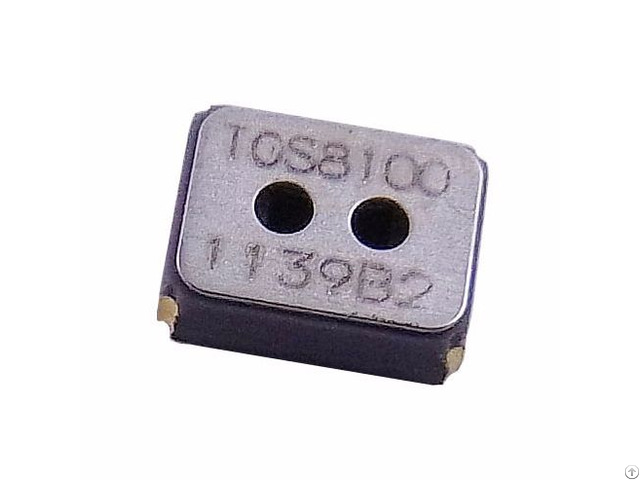

The device is housed in a surface-mount ceramic package.
Due to miniaturization of the sensing chip, TGS8100 requires a heater power consumption of only 15mW, and is suitable for low-power equipment and battery-operated instruments.
In the presence of detectable gas, sensor conductivity increases depending on gas concentration in the air.
A simple electrical circuit can convert the change in conductivity to an output signal which corresponds to the gas concentration.
The TGS8100 has high sensitivity to low concentrations of gaseous air contaminants such as cigarette smoke and cooking odors.
By utilizing the change ratio of sensor resistance from the resistance in clean air as relative response, human perception of air contaminants can be simulated and practical air quality control can be achieved.
/
Specifications
Model number: TGS8100
Sensing principle: MOS type
Standard package: Ceramic
Target gases: Air contaminants(hydrogen, ethanol, etc.
)
Typical detection range: 1 ~ 30ppm H2
Company Contact:
- Posted By: Shenzhen week Technology Ltd
- Phone: 86-0755-83289036
- Address: 16 Floor, Building #3, Zhongke Mansion, Gaoxin South 1st Rd, Hi-Tech Park, Nanshan, Shenzhen , Guangdong , China
- Email:
Published date: May 23, 2017
- Business Description: ISweek has been devoted to providing one-stop product distributing and purchasing solution and service for purchasers, suppliers, traders and manufactures from all over the world in industrial science and technology industry.
We are able to provide high-quality original products and thorough technical support and after-sale service to our member users.
