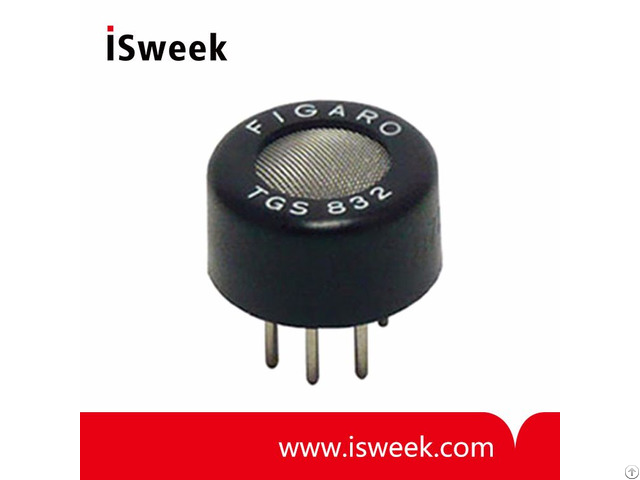

Tgs832 A00 Chlorofluorocarbons Gas Sensor - China

TGS832-A00 Chlorofluorocarbons Gas Sensor Features:

* High sensitivity to refrigerant gases

* Quick response

* Long term stability

* Uses simple electrical circuit

/

TGS832-A00 Chlorofluorocarbons Gas Sensor Applications:

* Portable and fixed installation refrigerant leak detectors

/

The sensing element of Figaro Gas Sensors is a tin dioxide (SnO2 ) semiconductor which has low conductivity in clean air.

In the presence of a detectable gas, the sensor's conductivity increases depending on the gas concentration in the air.

A simple electrical circuit can convert the change in conductivity to an output signal which corresponds to the gas concentration.

/

The TGS832-A00 has high sensitivity to refrigerant gases commonly used in air conditioning systems and refrigerators such as R-134a, R-404a, R-407c, and R-410 - TGS832-A00 has a gas diffusion hole in the sensor cap as well as in the sensor base.

By using the sensor with a suction pump, response speed can be accelerated, making it suitable for portable gas leakage checkers.

/

TGS832-A00 Chlorofluorocarbons Gas Sensor Specifications

Target gases: Halocarbon gas

Typical detection range: 10 - 1, 000ppm

Sensing principle: MOS type

Driving voltages: Heater Voltage: 5.0V Circuit Voltage: Max24V

Power consumption: 835mW

Dimensions: φ17 x 10mm

Weight: Approx.

2.4g
