Thickness 15mm Pancake Slip Ring Vsr P For Height Restriction - China

When you have a height restriction, a "pancake" slip rings - also called a "flat" or "platter" ring - could be the best solution.

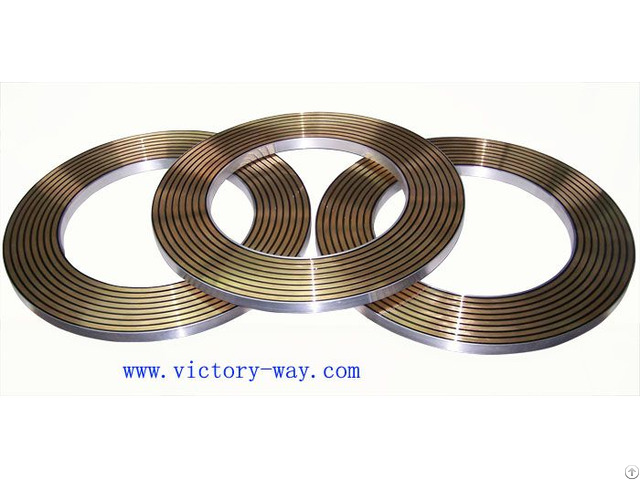

These slip ring units are based on a disc shaped rotor, which is embedded with concentric grooves to carry the signal and power, with a brush block assembly mounted over the top to act as the stator.

We can customize this type of slip ring from 4 to 50 channels, and any center bore size.

Contacts use precious metals and operating speed depends on the number of channels and overall size of slip ring.

A.

)Feature:

Ultra-thin design, the thickness reaches 15 mm min;

Center bore size can be customized;

Multi circuits/channels design can deliver both power & signal at the same time;

No need to maintain.

B.

)Specification:

Channels : 1~50 Ways

Voltage : 240V AC/DC

Current Rating : 2A/Ring

Speed : 100PRM Insulation Resistance : 1000MΩ@500VDC Dielectric Strength : AC600V@60Hz, 60S

Electrical Noise : 60 milliohms MAX @ 5~10 rpm, 50milliamps, 6V DC Lead Size/Type : AWG28 Sliver plated copper, Type ET Teflon

Lead Lengths : 250mm

Operate Temp : -20℃～+80℃

Storage Temp : -30℃～+90℃

C.

)Typical Application:

Rotary tables, test equipments;

Robots, processing equipments and rotary sensors;

Medical equipment;Radar System.
